Exploded View

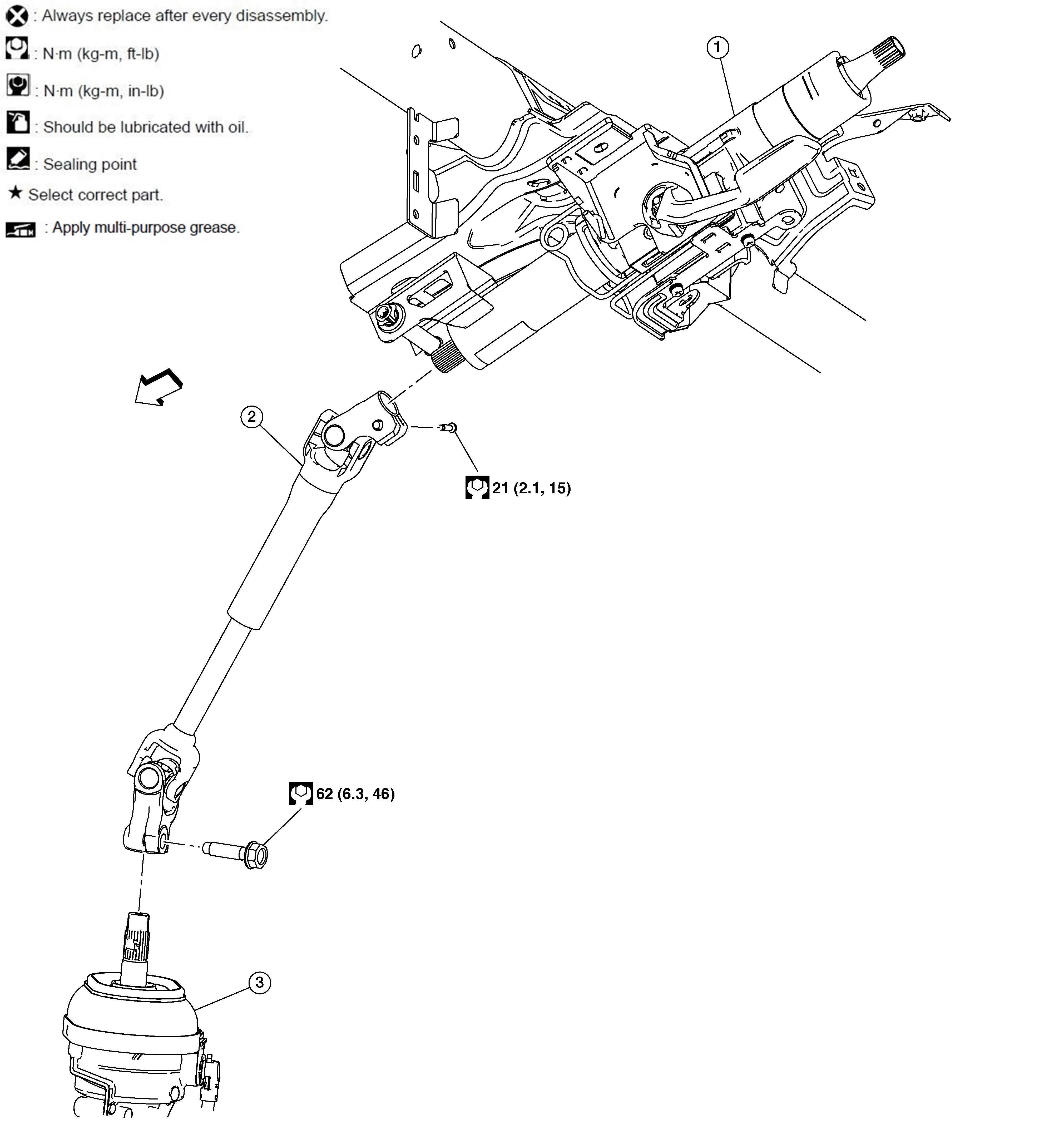

Fig 1: Lower Joint With Torque Specifications
GNSDB46894Courtesy of NISSAN
1. Steering column 2. Lower joint 3. Steering gear
SYMBOL Front
