Exploded View

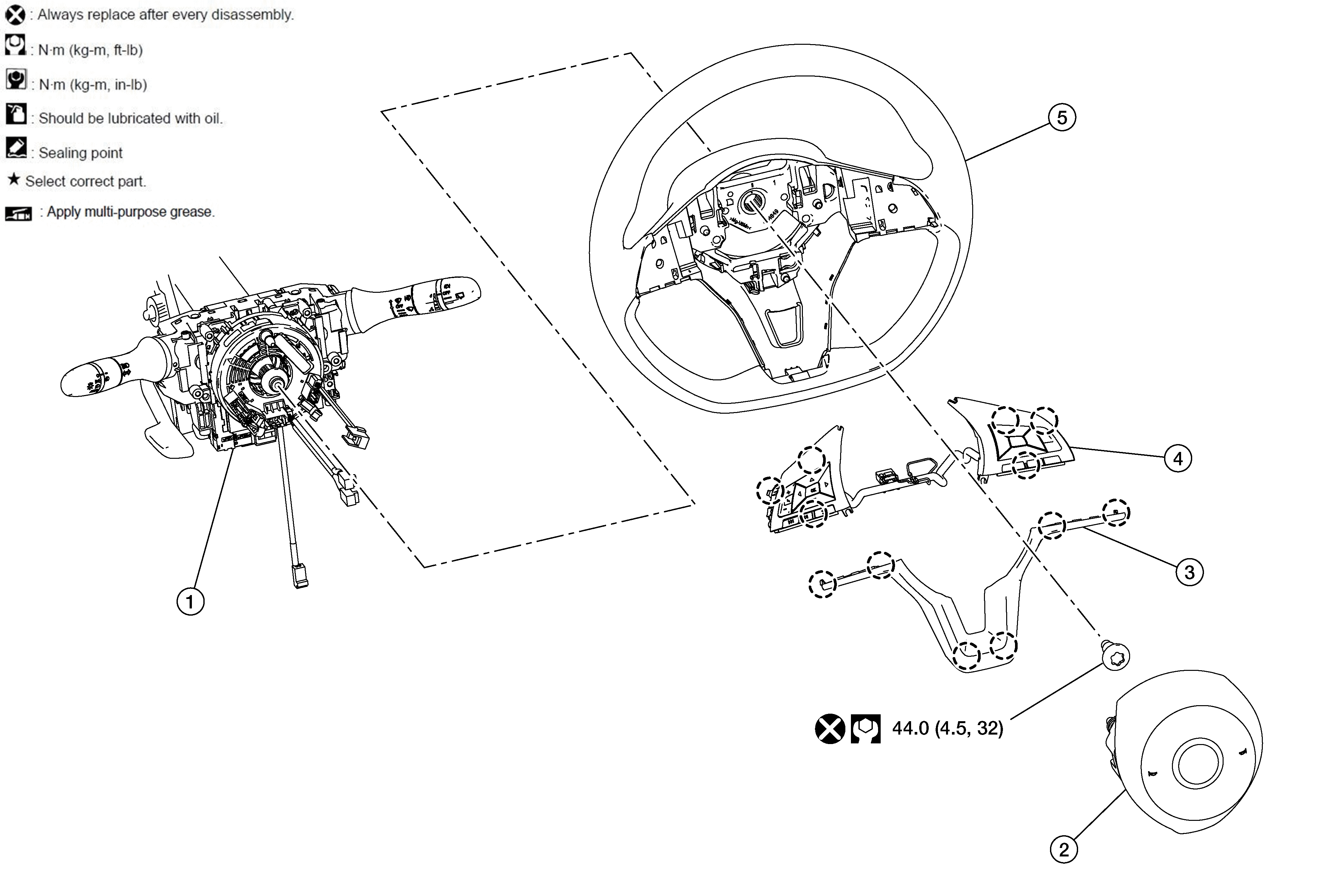

Fig 1: Steering Wheel With Torque Specifications
GNSDB47056Courtesy of NISSAN
1. Steering column assembly 2. Driver air bag module 3. Finisher
4. Steering switches 5. Steering wheel SYMBOL Pawl
