Exploded View

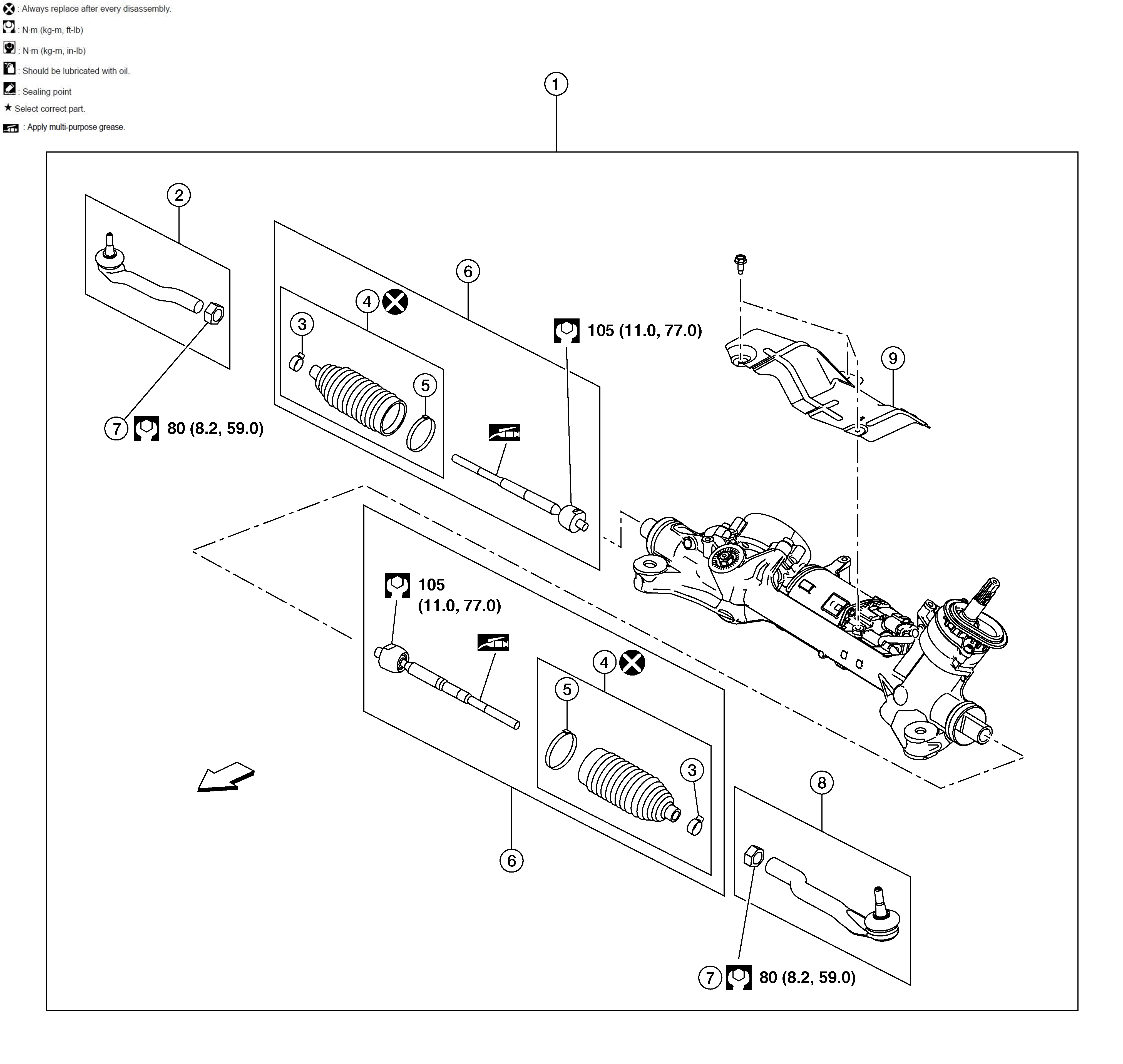

GNSDB47246Courtesy of NISSAN
1. Steering gear and linkage assembly 2. Outer socket (RH) 3. Small boot clamp
4. Boot kit 5. Large boot clamp 6. Inner socket kit
7. Lock nut 8. Outer socket (LH) SYMBOL Front
