Exploded View

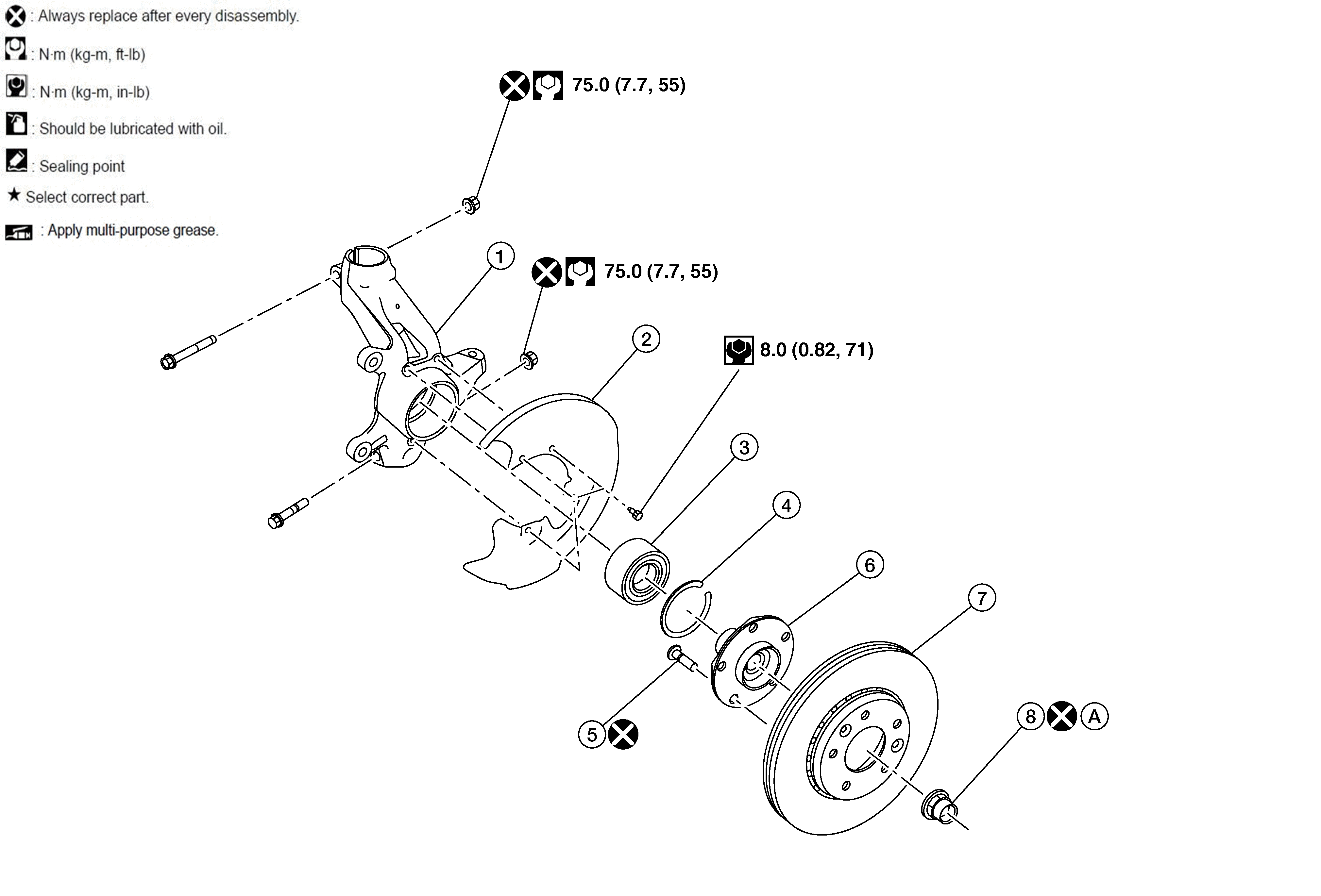

Fig 1: Steering Knuckle With Torque Specifications

Courtesy of NISSAN

1.	Steering knuckle	2.	Splash guard	3.	Wheel bearing
4.	Snap ring	5.	Hub bolt	6.	Wheel hub
7.	Disc rotor	8.	Wheel hub lock nut	A.	Refer to Removal and Installation .
