Exploded View

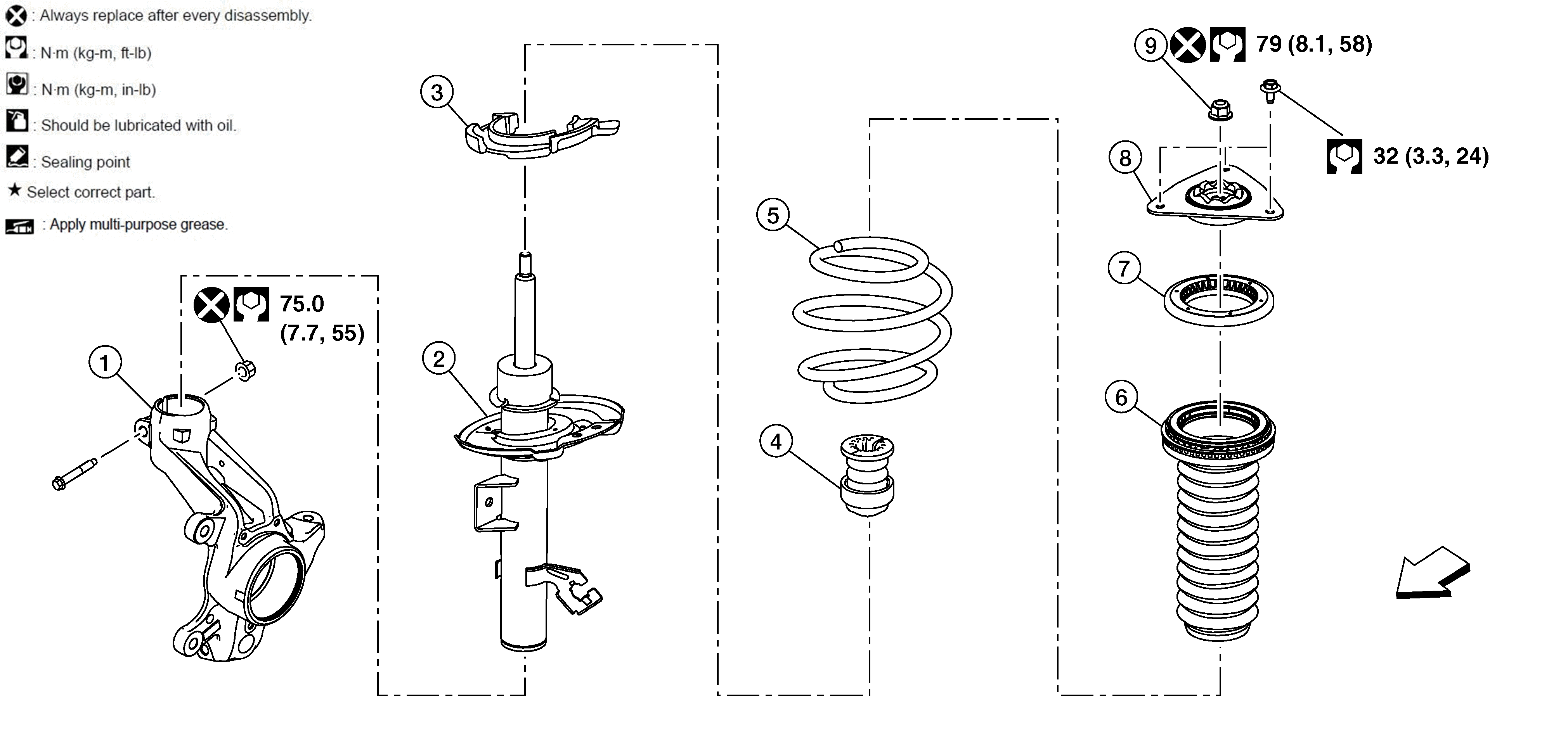

Fig 1: Front Coil Spring And Strut With Torque Specifications
GNSDB47564Courtesy of NISSAN
1. Steering knuckle 2. Strut 3. Lower rubber seat
4. Bound bumper 5. Coil spring 6. Dust cover
7. Mounting bearing 8. Mounting insulator 9. Piston rod lock nut
SYMBOL Front
