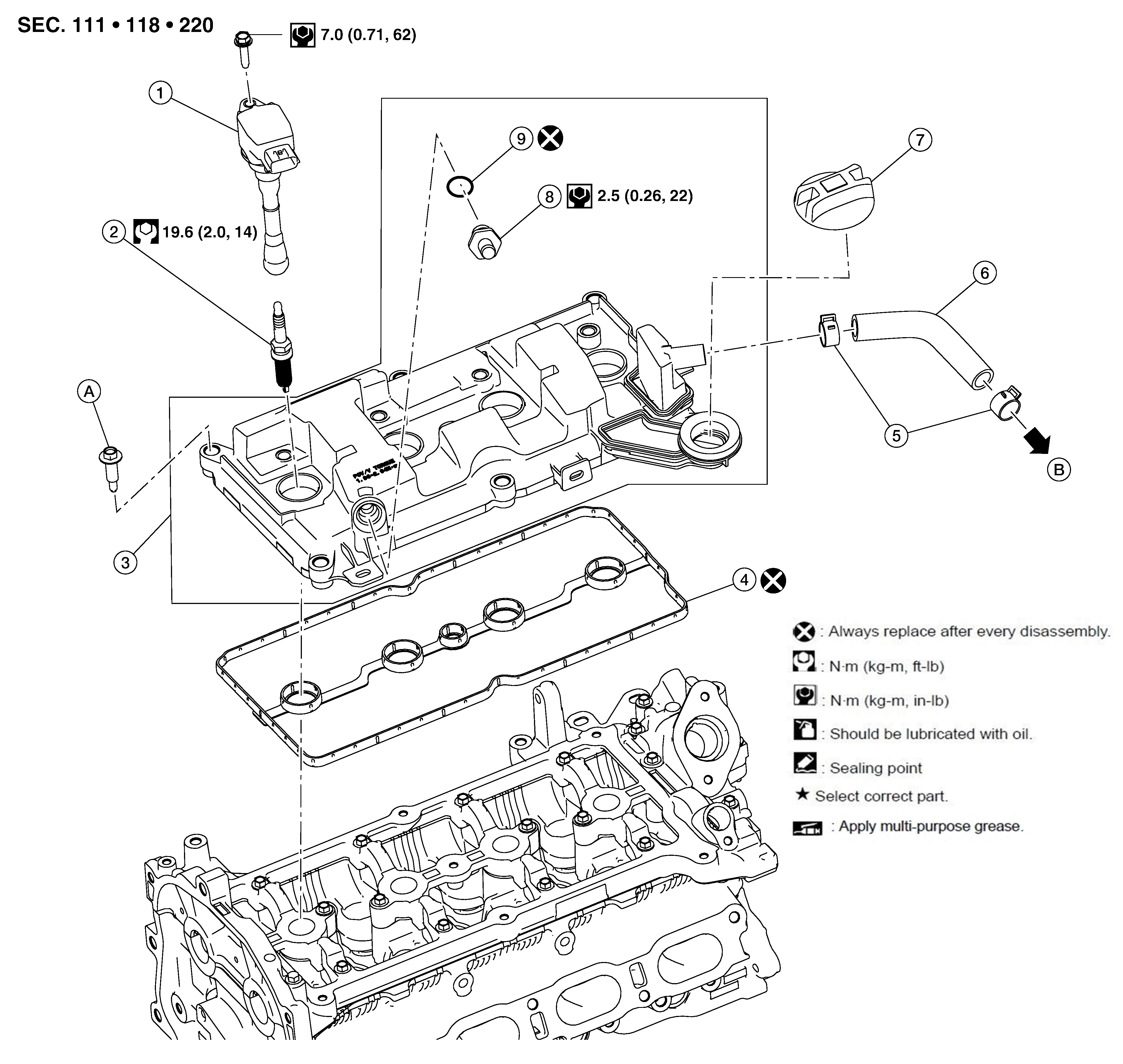

Exploded View

Fig 1: Spark Plug With Torque Specifications

Courtesy of NISSAN

1.	Ignition coil	2.	Spark plug	3.	Rocker cover assembly
4.	Rocker cover gasket	5.	Clamp	6.	Blow-by hose
7.	Oil filler cap	8.	PCV valve	9.	O-ring
A.	Refer to Exploded View .	B.	To resonator duct. Refer to Exploded View .
