Removal and Installation
CAUTION:
If replacing chassis control module (with built in steering angle sensor), perform "ADDITIONAL SERVICE WHEN REPLACING CHASSIS CONTROL MODULE (WITH BUILT IN STEERING ANGLE SENSOR)". Refer to Description .
REMOVAL
- Remove spiral cable assembly. Refer to Removal and Installation .

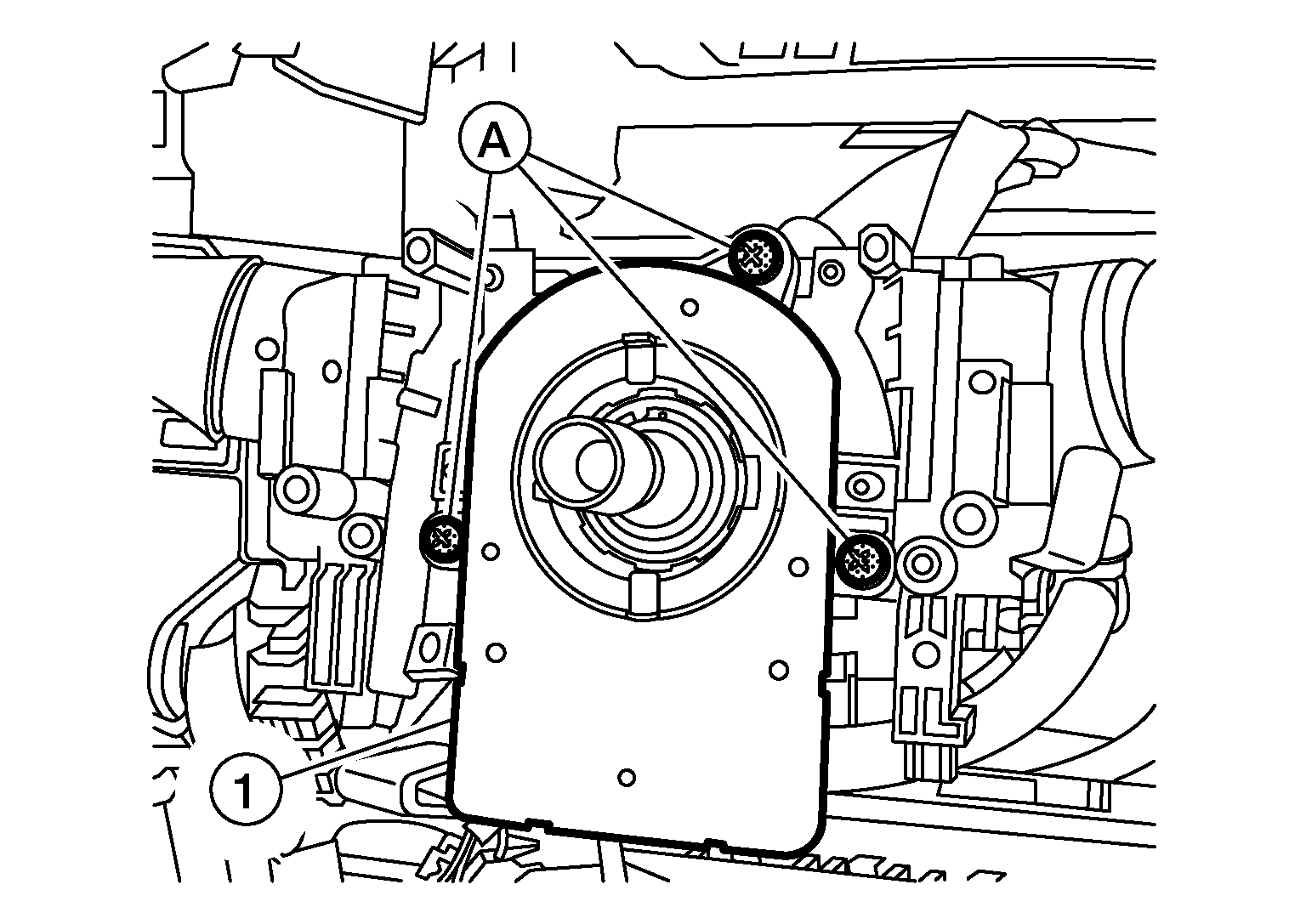

- Disconnect harness connector from chassis control module [with built in steering angle sensor (1)].
- Remove screws (A) and remove chassis control module (with built in steering angle sensor).CAUTION:
Do not drop chassis control module (with built in steering angle sensor).
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
If replacing chassis control module (with built in steering angle sensor), perform "ADDITIONAL SERVICE WHEN REPLACING CHASSIS CONTROL MODULE (WITH BUILT IN STEERING ANGLE SENSOR)". Refer to Description .
