Home › Nissan-Datsun › 2023 › Sentra SV › Repair and Diagnosis › Body & Frame › Windows › Power Window Control System › Wiring Diagram › Power Window System › Wiring Diagram

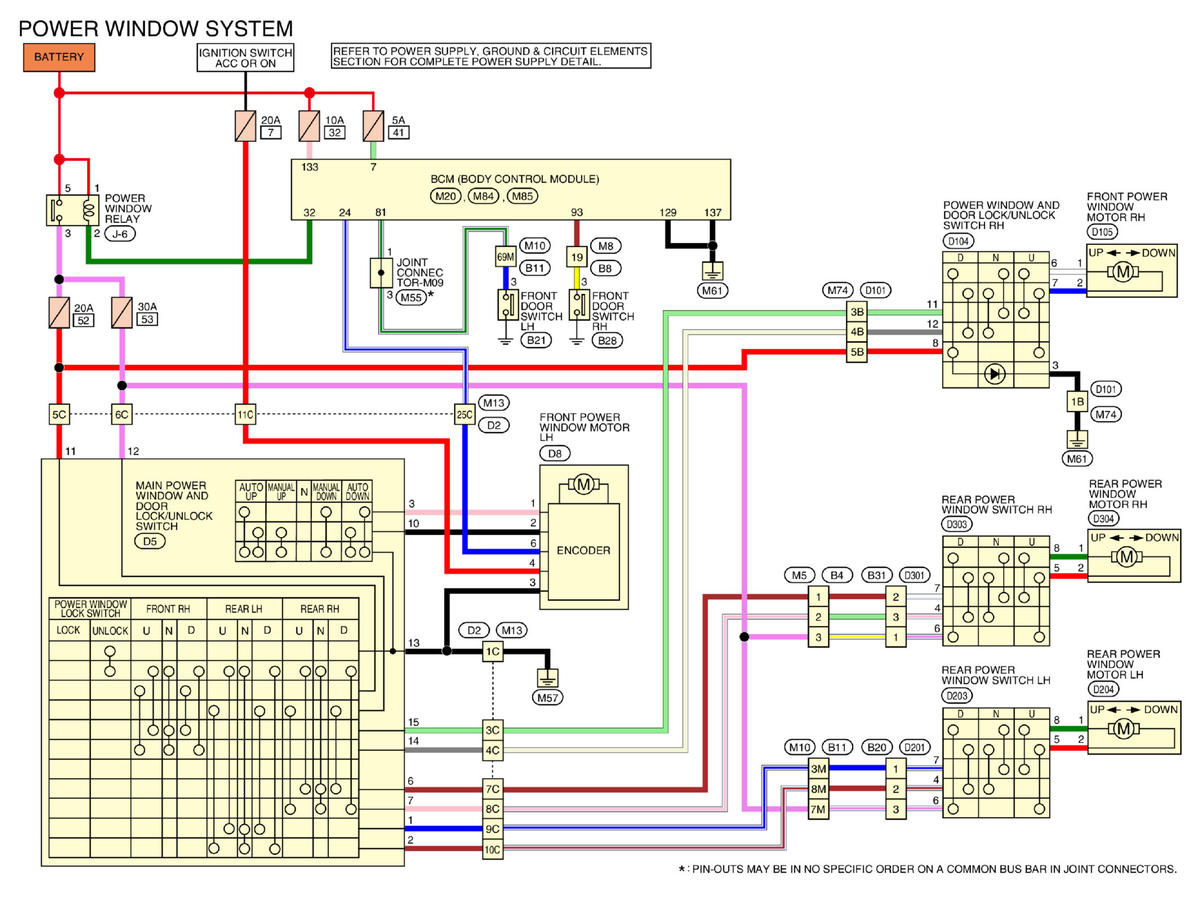

Power Window System: Wiring Diagram

GNSW7820Courtesy of EWD
