Exploded View

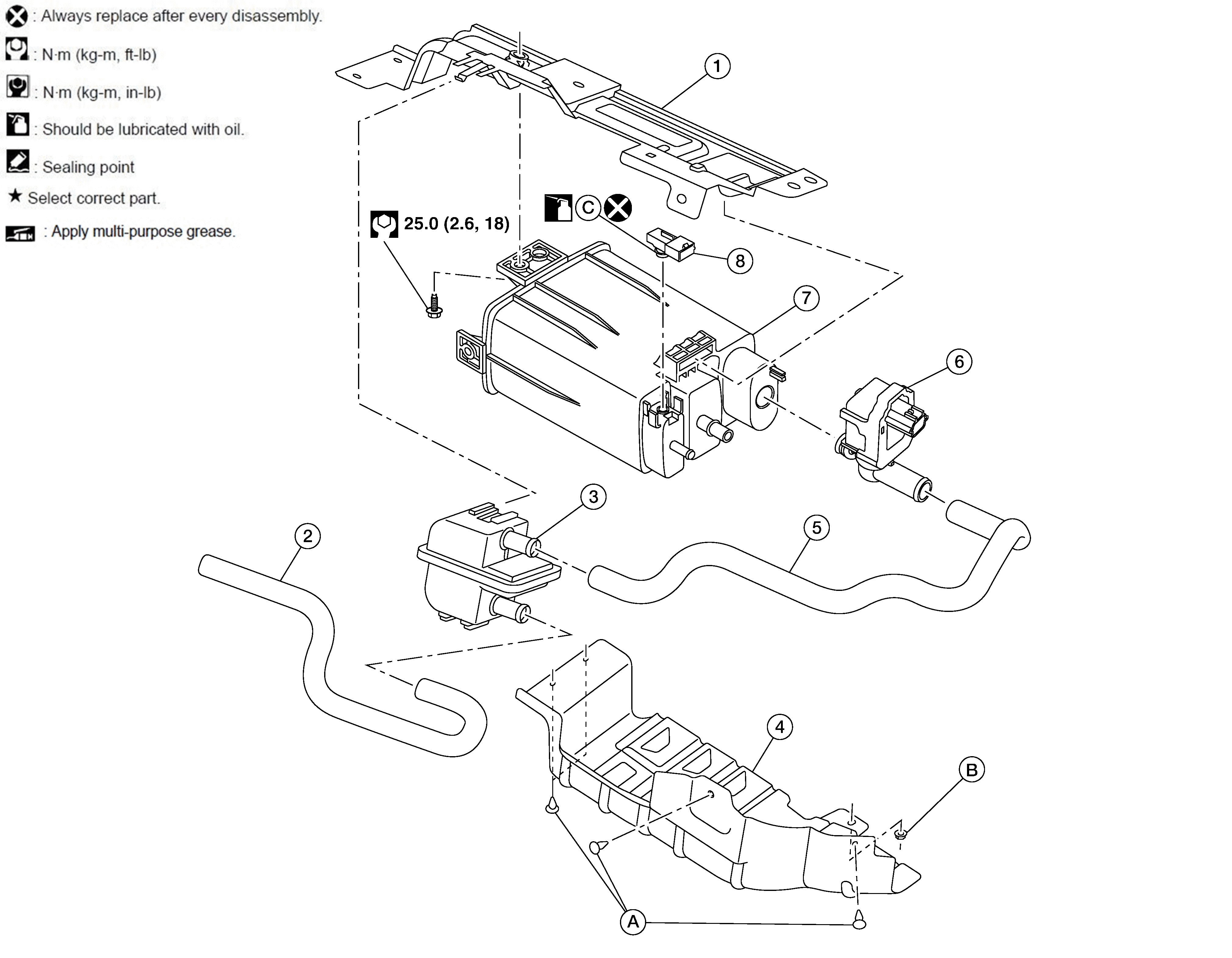

Fig 1: EVAP Canister With Torque Specifications

Courtesy of NISSAN

1.	EVAP canister bracket	2.	EVAP canister filter drain hose	3.	EVAP canister filter
4.	EVAP canister protector	5.	EVAP hose	6.	EVAP canister vent control valve
7.	EVAP canister	8.	EVAP control system pressure sensor	A.	Clip
B.	Nut	C.	O-ring
