Exploded View

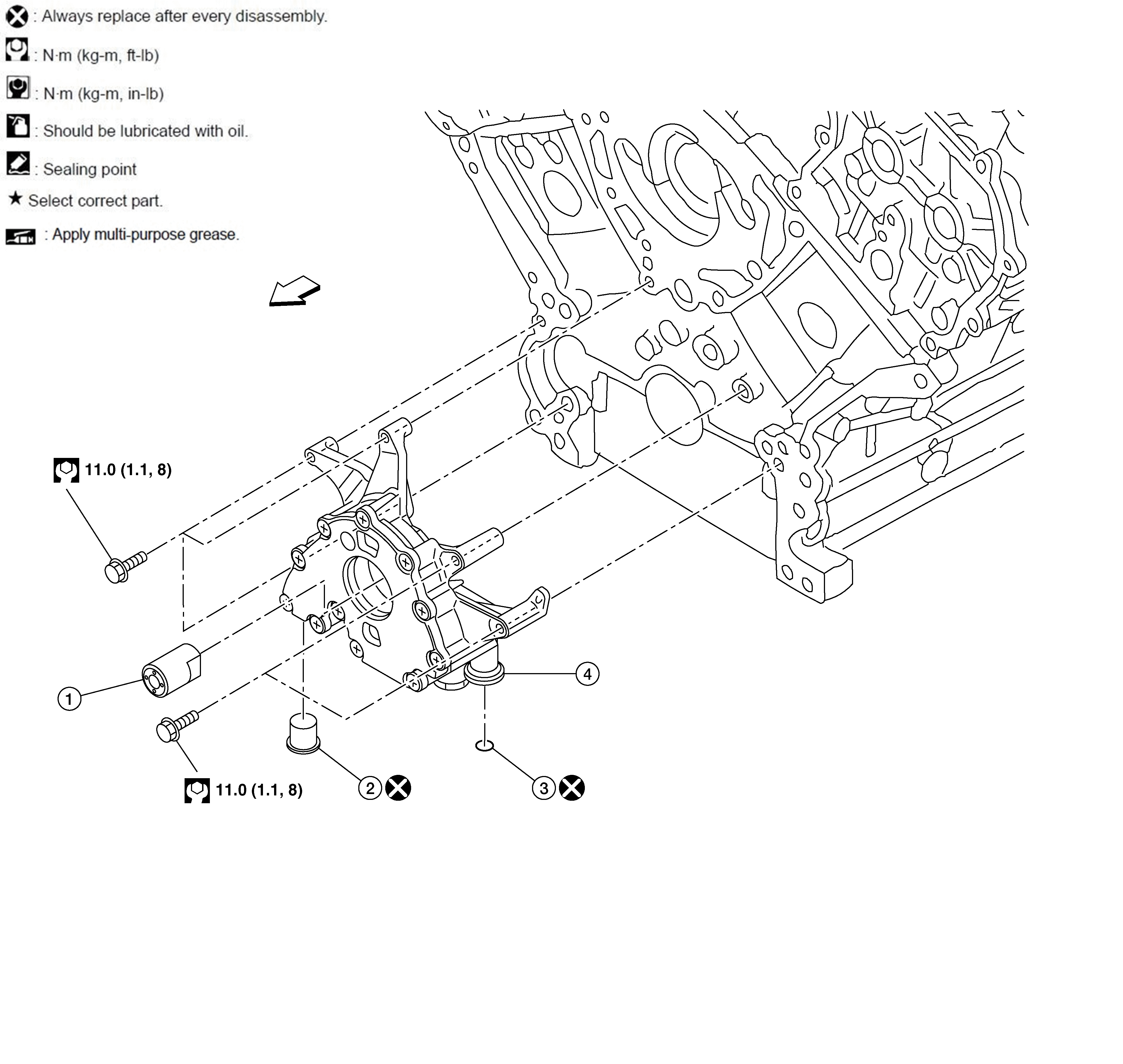

Fig 1: Oil Pump With Torque Specifications
GNSDB50540Courtesy of NISSAN
1. Oil pump drive spacer 2. O-ring 3. O-ring
4. Oil pump assembly SYMBOL Front
