System Description
›
System
›
Direct Injection Gasoline System
›

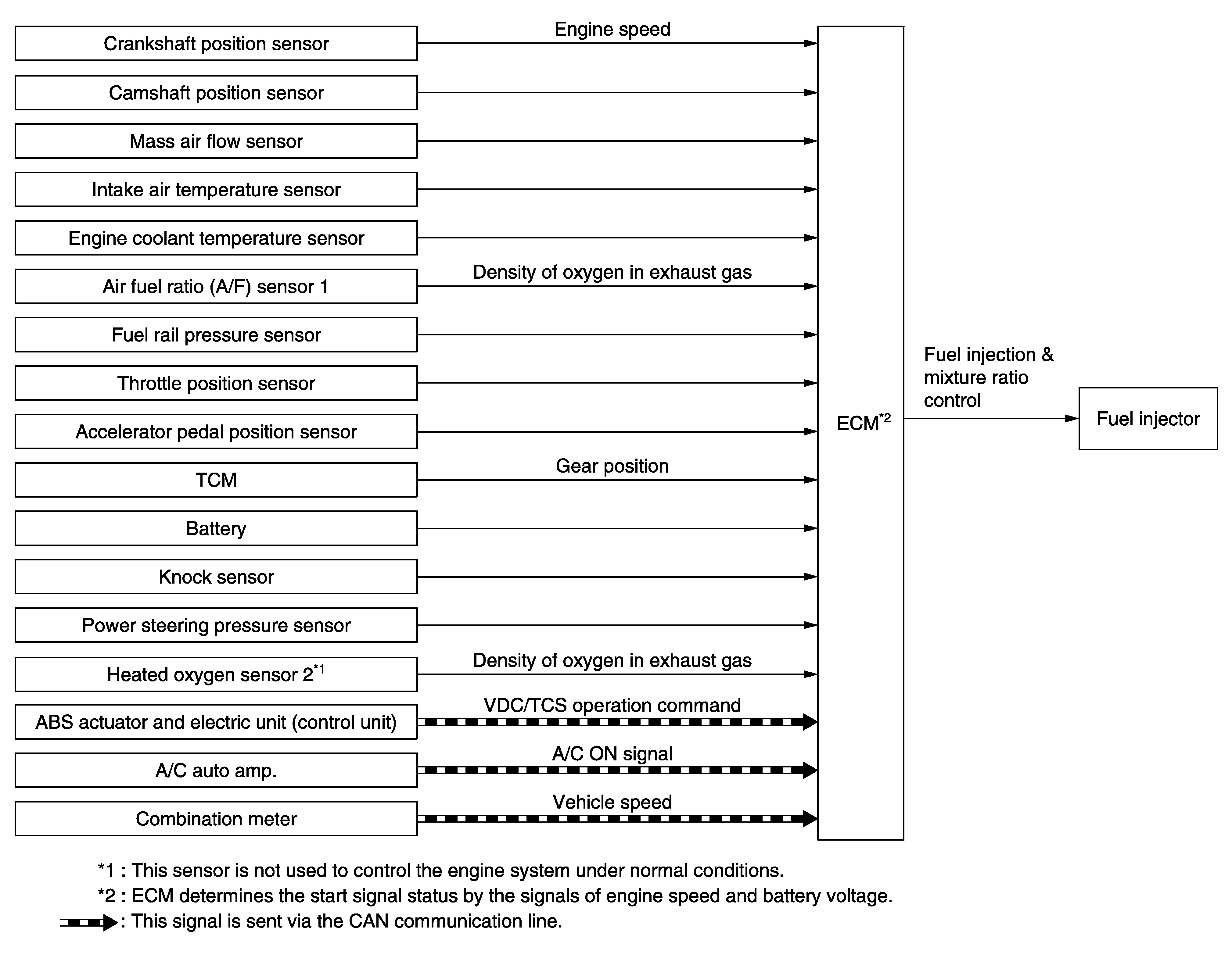

System Diagram
System Diagram
Courtesy of NISSAN
NOTE:
Both "Engine coolant temperature sensor" and "Engine coolant temperature sensor 1" are used in this service information. These indicate the same part.
