Removal and Installation

Exploded View

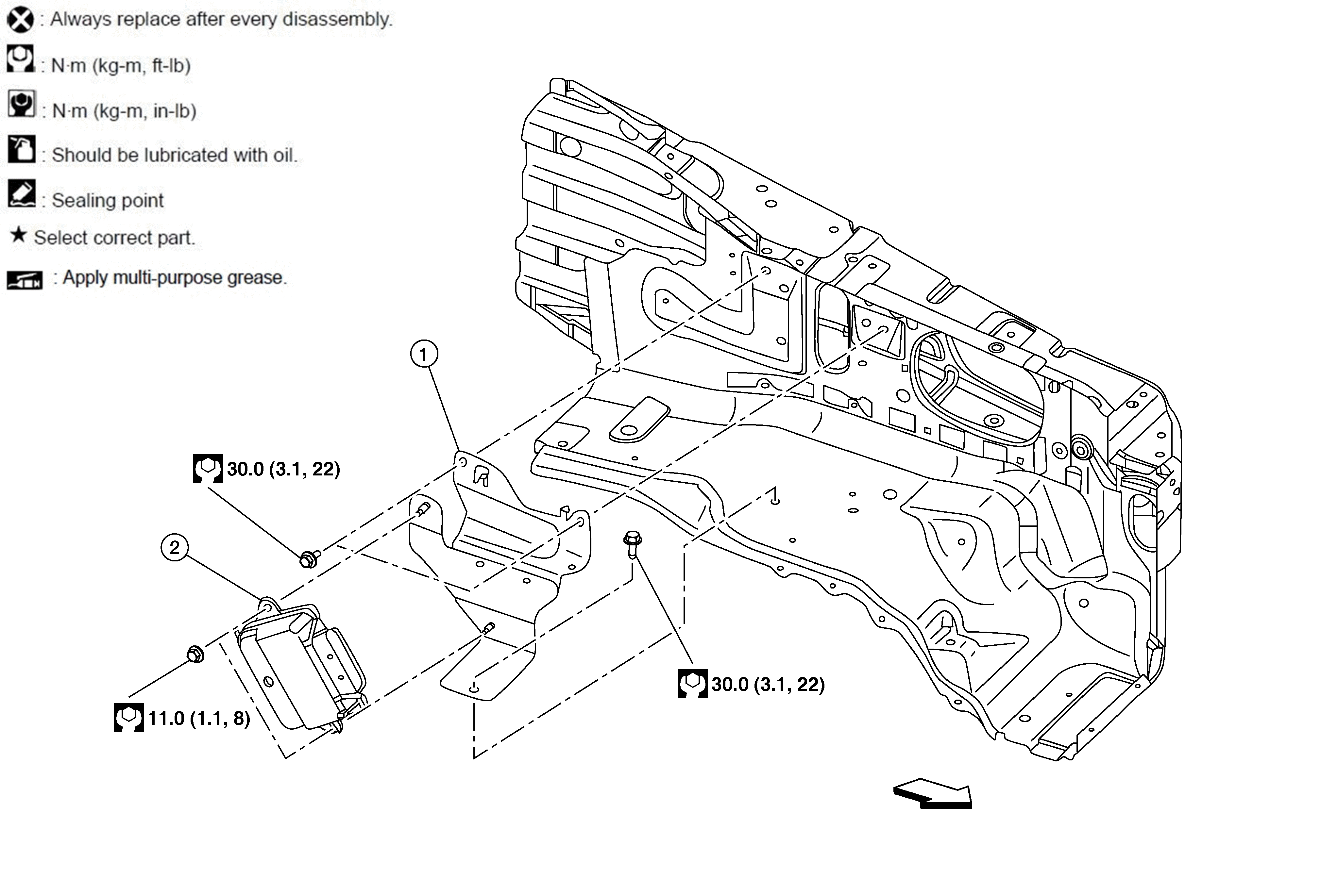

Fig 1: VVEL Control Module With Torque Specifications

Courtesy of NISSAN

1.

VVEL control module bracket

2.

VVEL control module

Front

REMOVAL

1. Remove the cowl top extension. Refer to Removal and Installation - Cowl Top Extension .
2. Disconnect the harness connector from the VVEL control module.
3. Remove nuts and VVEL control module.
4. Remove bolts and VVEL control module bracket (if necessary).

INSTALLATION

Installation is in reverse order of removal.
