Exploded View

XD Models

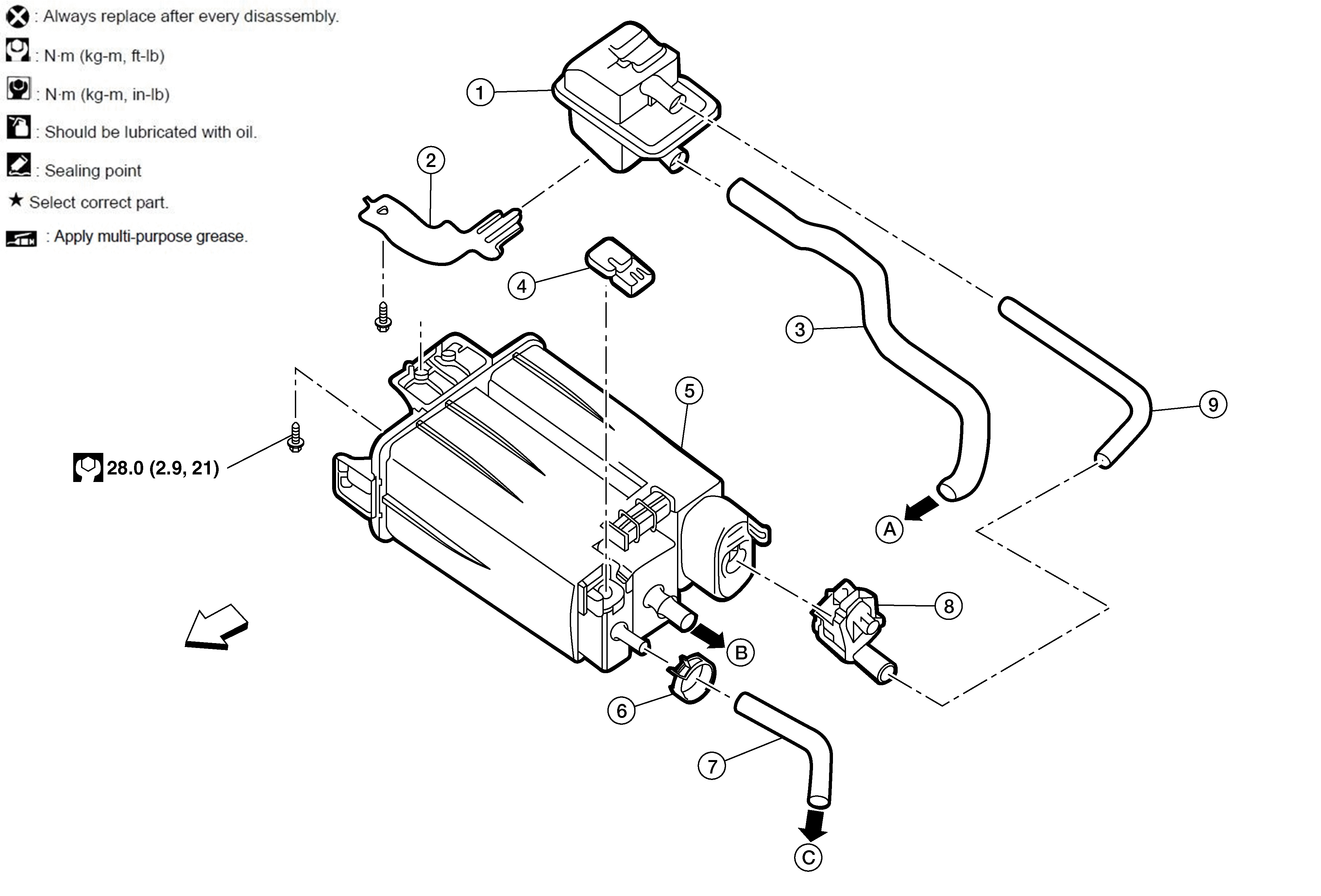

Fig 1: EVAP Control System Pressure Sensor With Torque Specifications - XD Models

GNSDB49845

Courtesy of NISSAN

1.	EVAP canister filter	2.	EVAP filter bracket	3.	EVAP canister filter vent hose
4.	EVAP control system pressure sensor (with O-ring)	5.	EVAP canister	6.	Clamp
7.	EVAP canister purge hose	8.	EVAP canister vent control valve	9.	EVAP canister vent control valve hose
A.	To vehicle body	B.	To fuel tank. Refer to Exploded View .	C.	To EVAP tube. Refer to Exploded View .
	Front

Non-XD Models

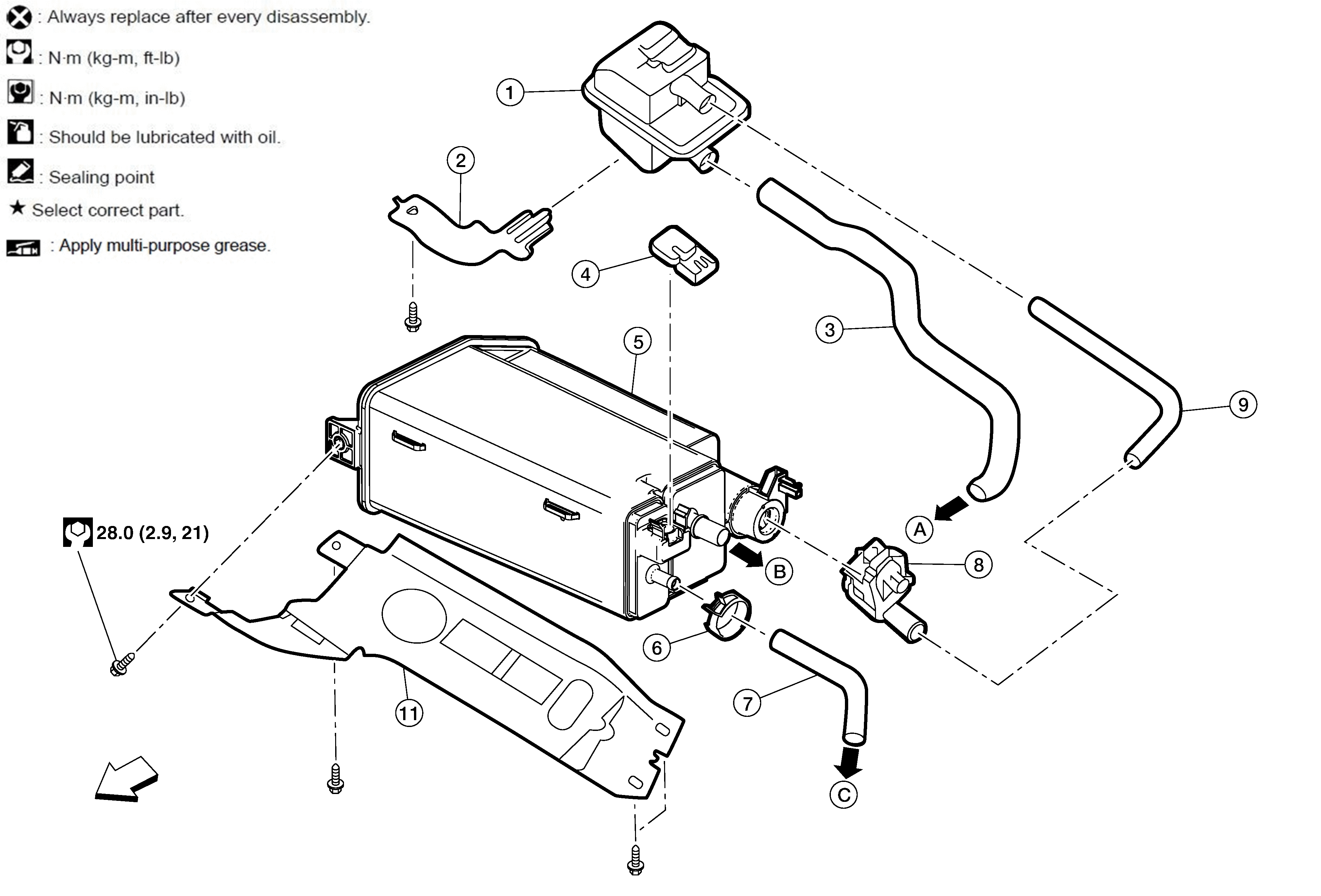

Fig 2: EVAP Control System Pressure Sensor With Torque Specifications - Non-XD Models

GNSDB50184

Courtesy of NISSAN

1.	EVAP canister filter	2.	EVAP filter bracket	3.	EVAP canister filter vent hose
4.	EVAP control system pressure sensor (with O-ring)	5.	EVAP canister	6.	Clamp
7.	EVAP canister purge hose	8.	EVAP canister vent control valve	9.	EVAP canister vent control valve hose
10.	EVAP canister bracket	A.	To vehicle body	B.	To fuel tank. Refer to Exploded View .
C.	To EVAP tube. Refer to Exploded View .		Front
