Exploded View

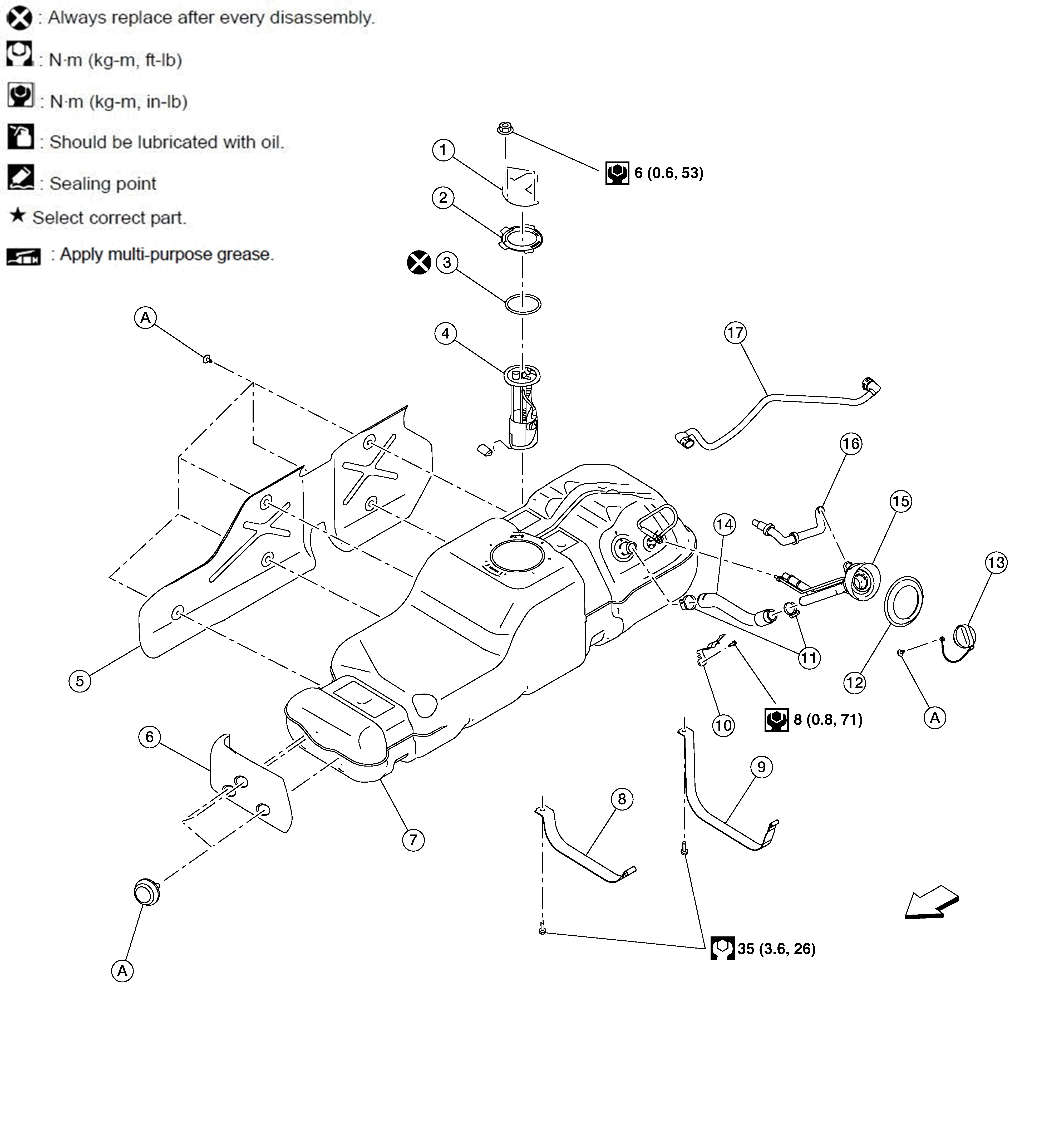

Fig 1: Fuel Level Sensor Unit And Fuel Pump Assembly With Torque Specifications

Courtesy of NISSAN

1.	Fuel level sensor unit protector	2.	Lock ring	3.	O-ring
4.	Fuel level sensor unit and fuel pump assembly	5.	Fuel tank side protector	6.	Fuel tank front protector
7.	Fuel tank	8.	Fuel tank front mounting strap	9.	Fuel tank rear mounting strap
10.	Fuel filler tube bracket	11.	Clamp	12.	Grommet
13.	Fuel filler cap	14.	Fuel filler hose	15.	Fuel filler tube
16.	EVAP drain hose	17.	EVAP hose	A.	Clip
	Front
