Exploded View

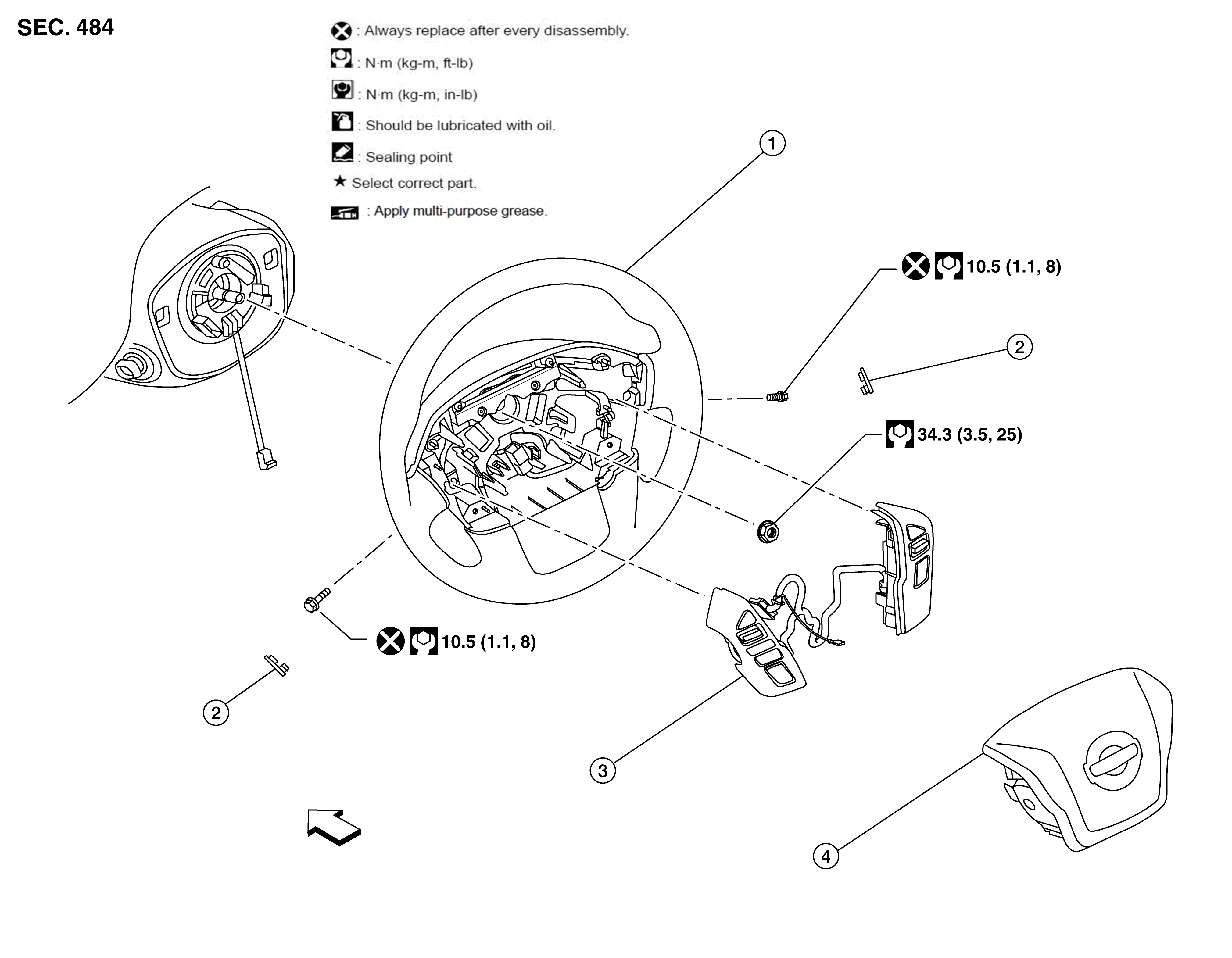

Fig 1: Steering Wheel With Torque Specifications
GNSDB50033Courtesy of NISSAN
1. Steering wheel 2. Cover 3. Steering switches
4. Driver air bag module SYMBOL Front
