Exploded View

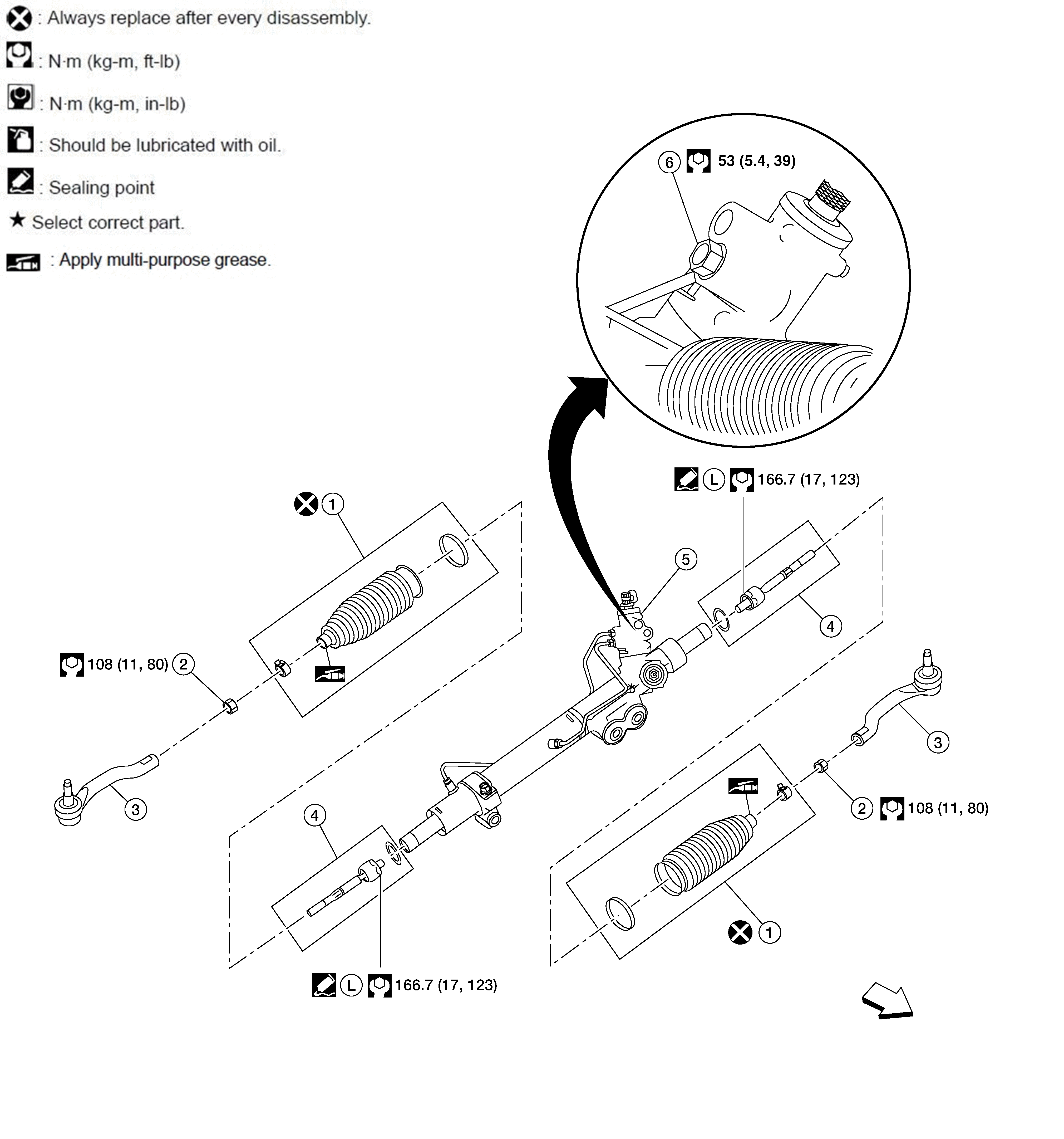

Fig 1: Steering Gear And Linkage With Torque Specifications - Non-XD Models
GNSDB51441Courtesy of NISSAN
1. Boot 2. Lock nut 3. Outer socket
4. Inner socket 5. Steering gear 6. Check valve insert
SYMBOL Front
