Exploded View

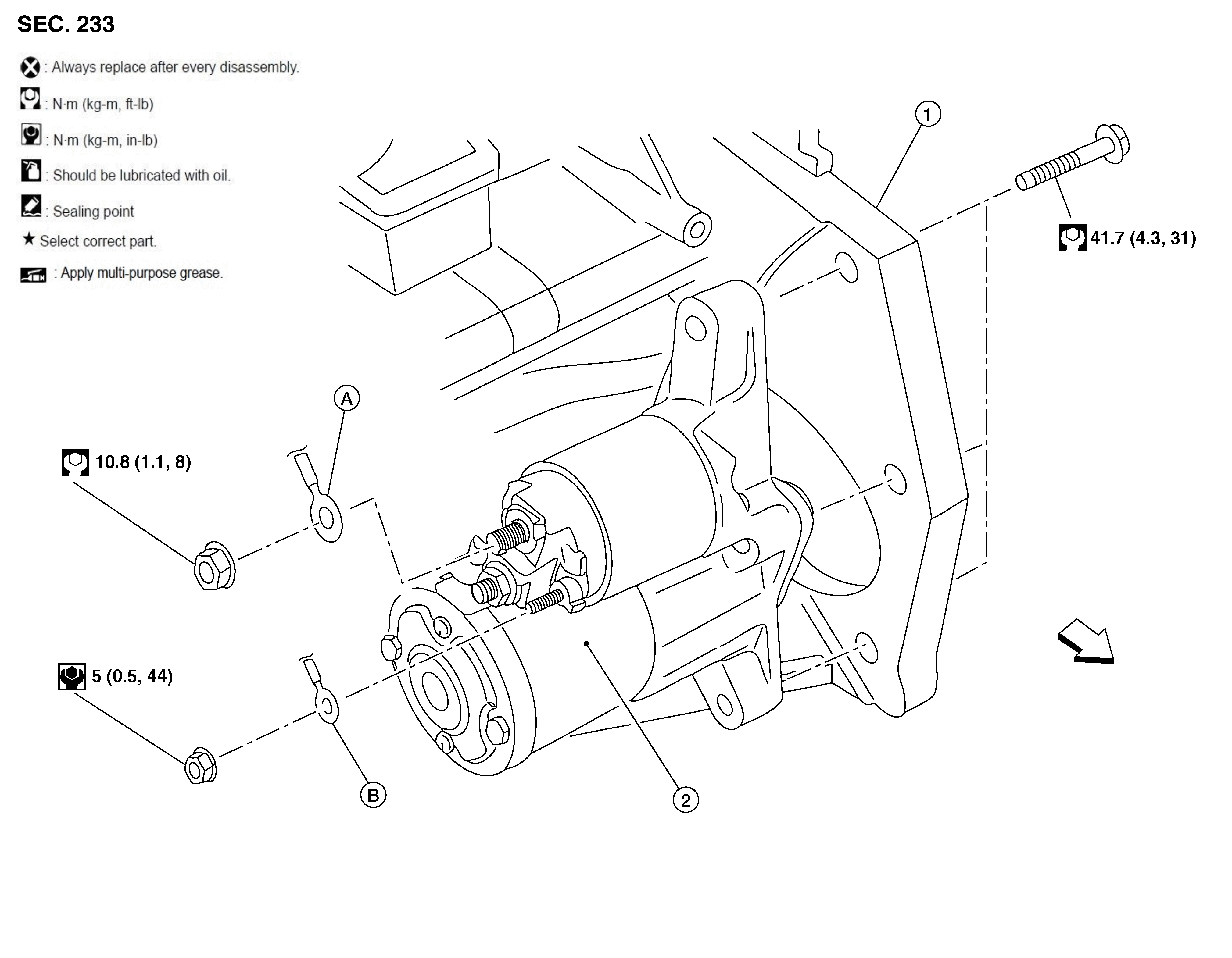

Fig 1: Starter Motor Components with Torque Specifications
GNSDB54123SYMBOLCourtesy of NISSAN
1. Cylinder block 2. Starter motor A. "B" terminal harness
B. "S" terminal harness SYMBOL Front
