Exploded View

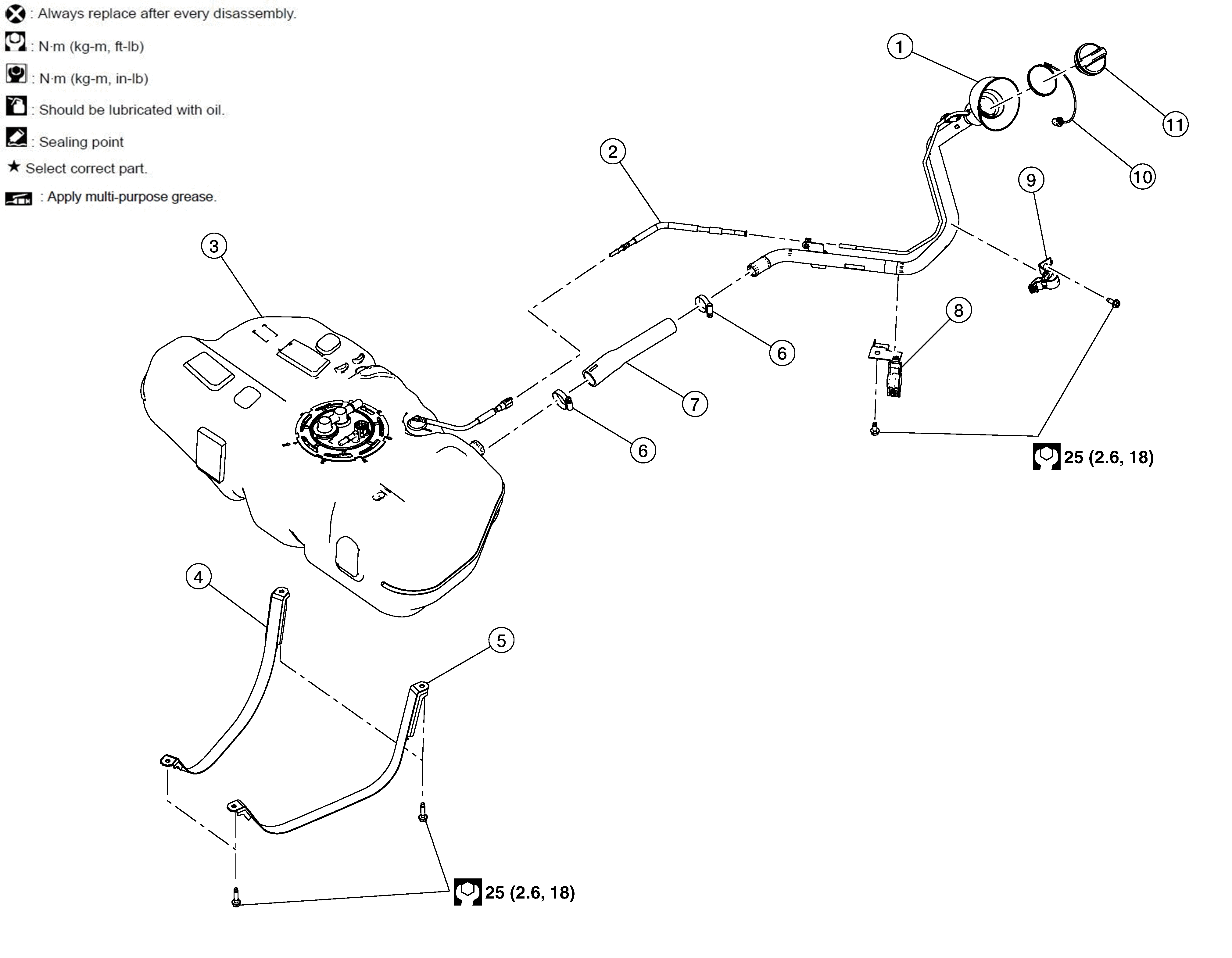

Fig 1: Fuel Tank With Torque Specifications

Courtesy of NISSAN

1.	Fuel filler tube	2.	Vent hose	3.	Fuel tank
4.	Fuel tank strap (RH)	5.	Fuel tank strap (LH)	6.	Clamp
7.	Fuel filler hose	8.	Fuel filler tube lower bracket	9.	Fuel filler tube upper bracket
10.	Fuel filler cap retainer	11.	Fuel filler cap
