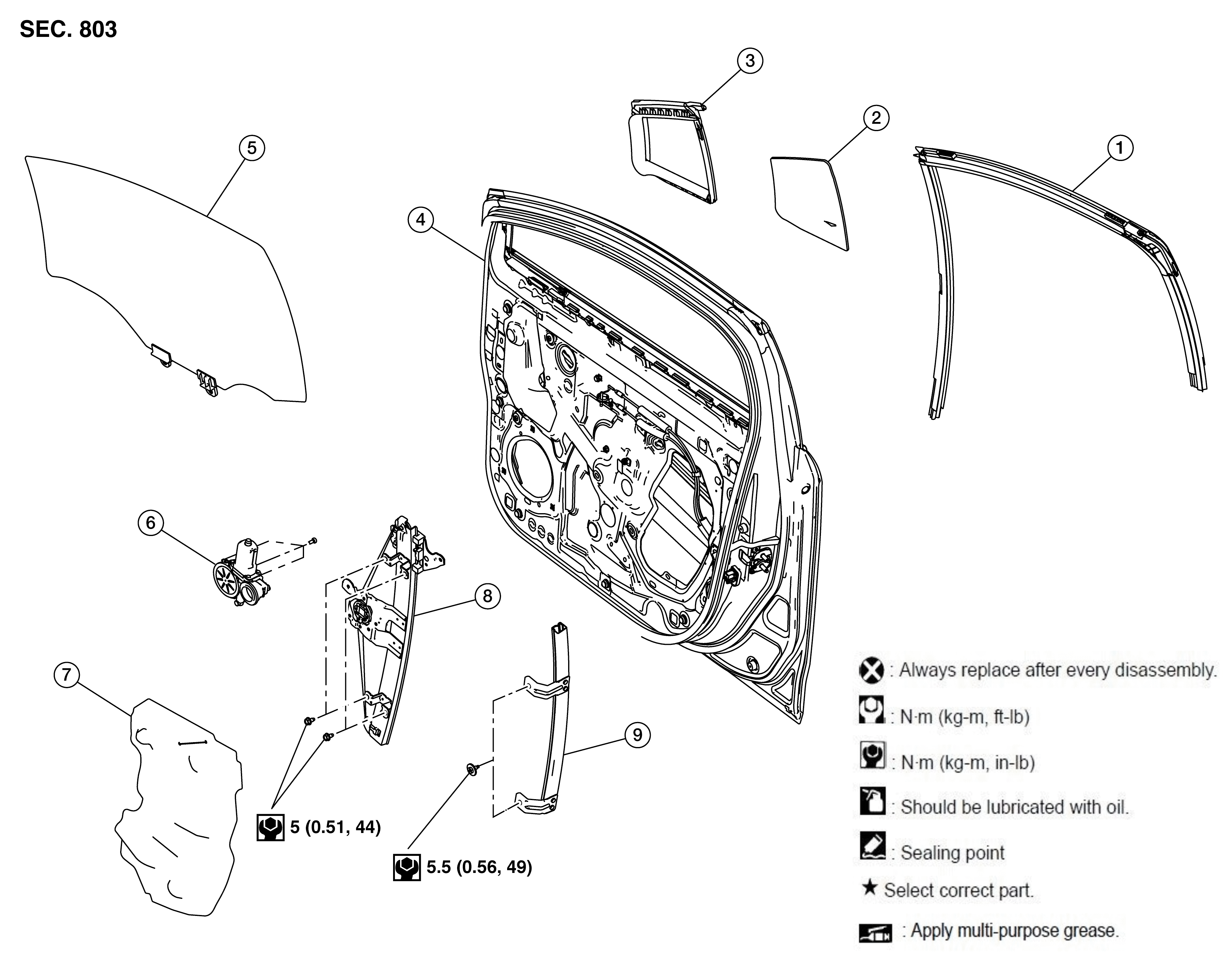

Exploded View

GNSDB54767Courtesy of NISSAN
1. Door glass rubber run 2. Front partition glass 3. Front partition weather-strip
4. Front door 5. Door glass 6. Front power window motor
7. Vapor barrier 8. Door glass regulator 9. Door glass rear run
