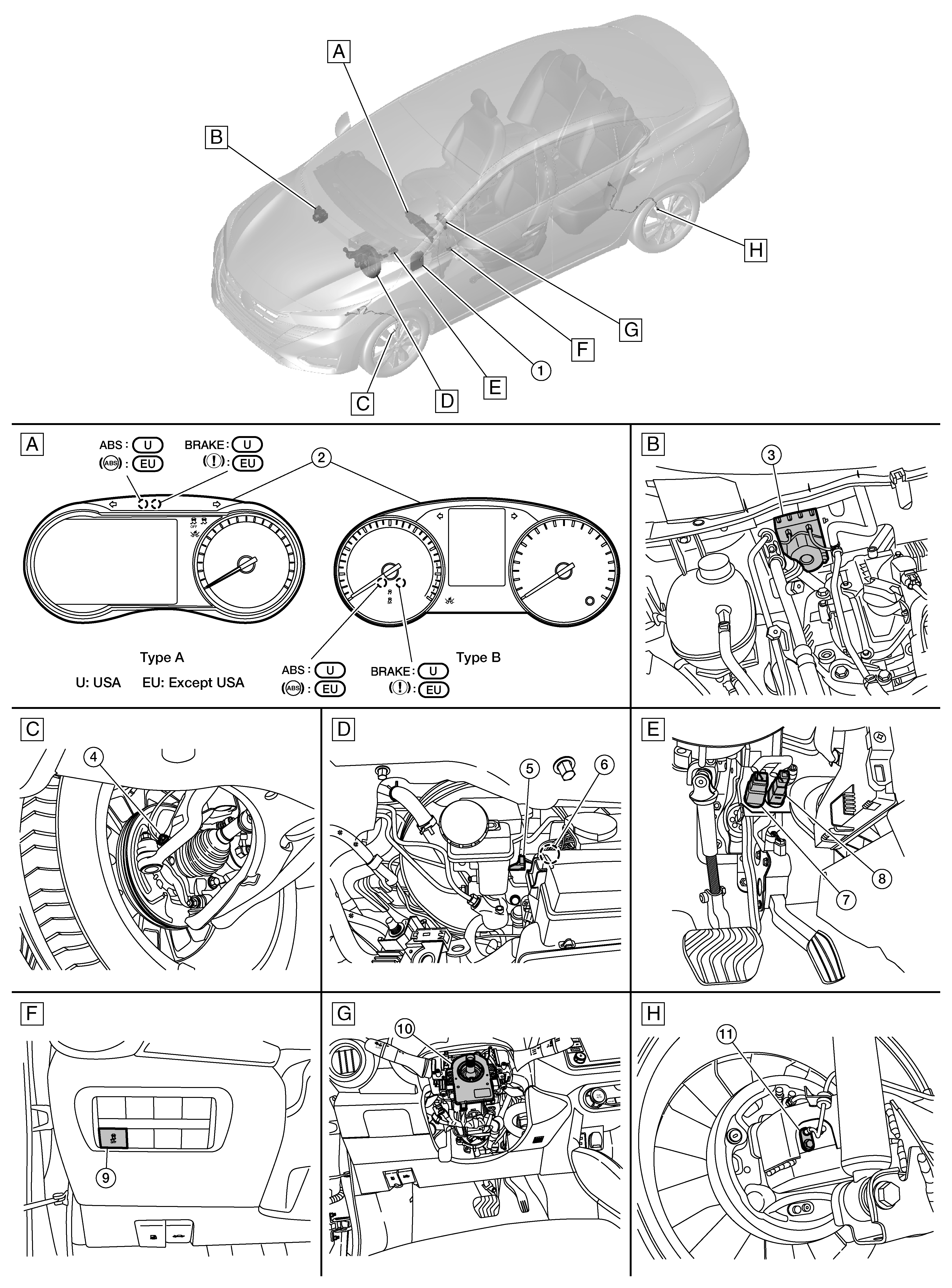

Component Location
| A. | Left side of instrument panel (view with component removed from vehicle) | B. | RH side of engine compartment | C. | Left front wheel area |
| D. | LH side of engine compartment | E. | Brake pedal area (view with instrument lower panel LH removed) | F. | Left side of instrument panel |
| G. | Steering column (view with steering wheel removed) | H. | Left rear wheel area |
| No. | Component | Function |
|---|---|---|
| 1. | BCM (Body Control Module) | Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN communication:
Refer to Component Location for detailed component location. |
| 2. | Combination meter | Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN communication:
Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN communication:
Refer to Component Location (TYPE A) or Component Location (TYPE B) for detailed component location. |
| 3. | ABS (Anti-lock Braking System) actuator and electric unit (control unit) | Refer to ABS Actuator and Electric Unit (Control Unit) . |
| 4. | Front wheel sensor LH (RH similar) | Refer to Wheel Sensor and Sensor Rotor . |
| 5. | Brake fluid level switch | Refer to Brake Fluid Level Switch . |
| 6. | Vacuum sensor | Refer to Vacuum Sensor . |
| 7. | Stop lamp switch | Refer to Stop Lamp Switch . |
| 8. | Brake pedal position switch | Refer to Brake Pedal Position Switch . |
| 9. | VDC OFF switch (if equipped) | Refer to VDC OFF Switch . |
| 10. | Steering angle sensor | Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication: Refer to Steering Angle Sensor . |
| 11. | Rear wheel sensor LH (RH similar) | Refer to Wheel Sensor and Sensor Rotor . |
