Exploded View

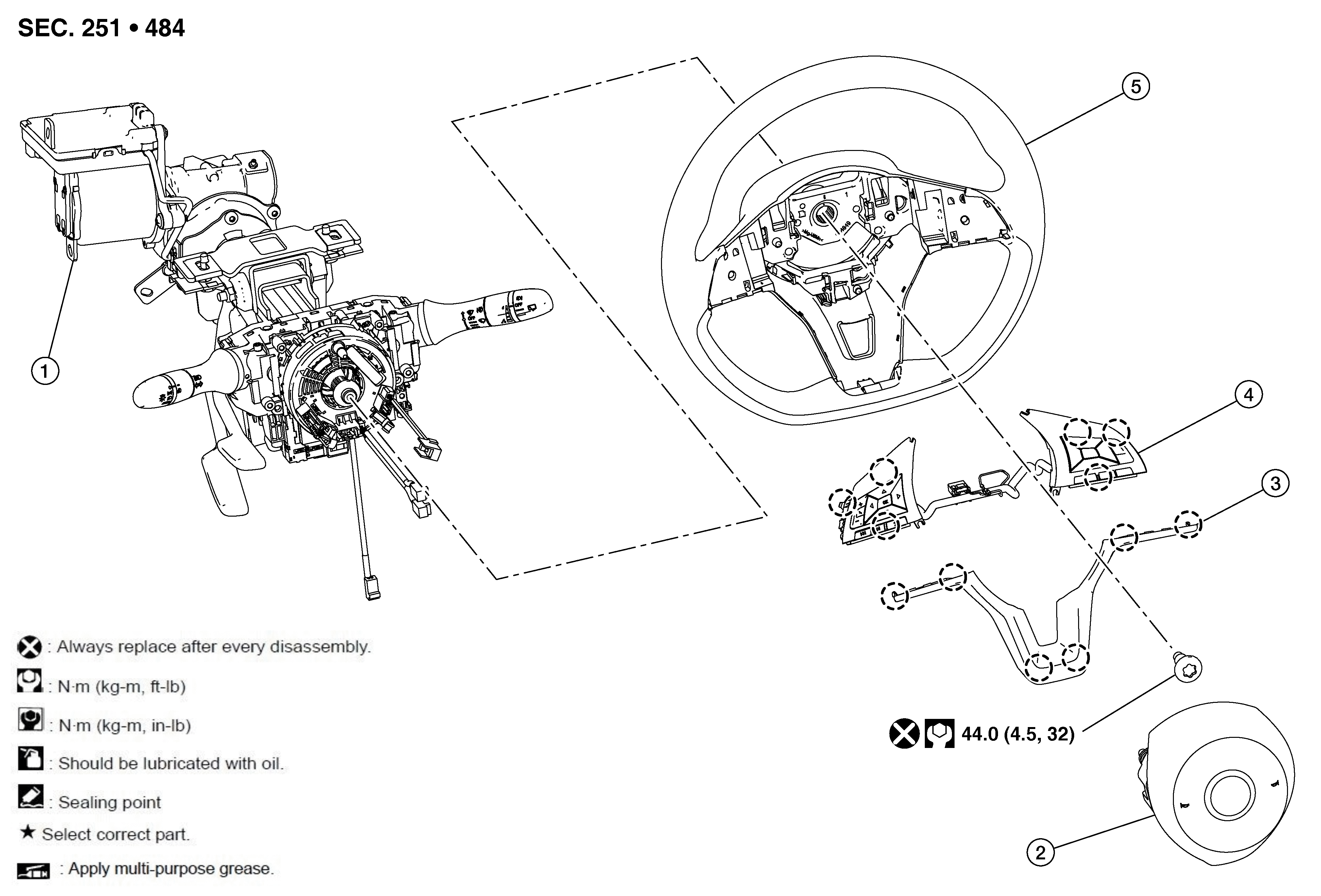

Fig 1: Steering Wheel Components with Torque Specifications
GNSDB51975Courtesy of NISSAN
1. Steering column assembly 2. Driver air bag module 3. Finisher
4. ASCD/ICC steering switches 5. Steering wheel SYMBOL Pawl
