System Description

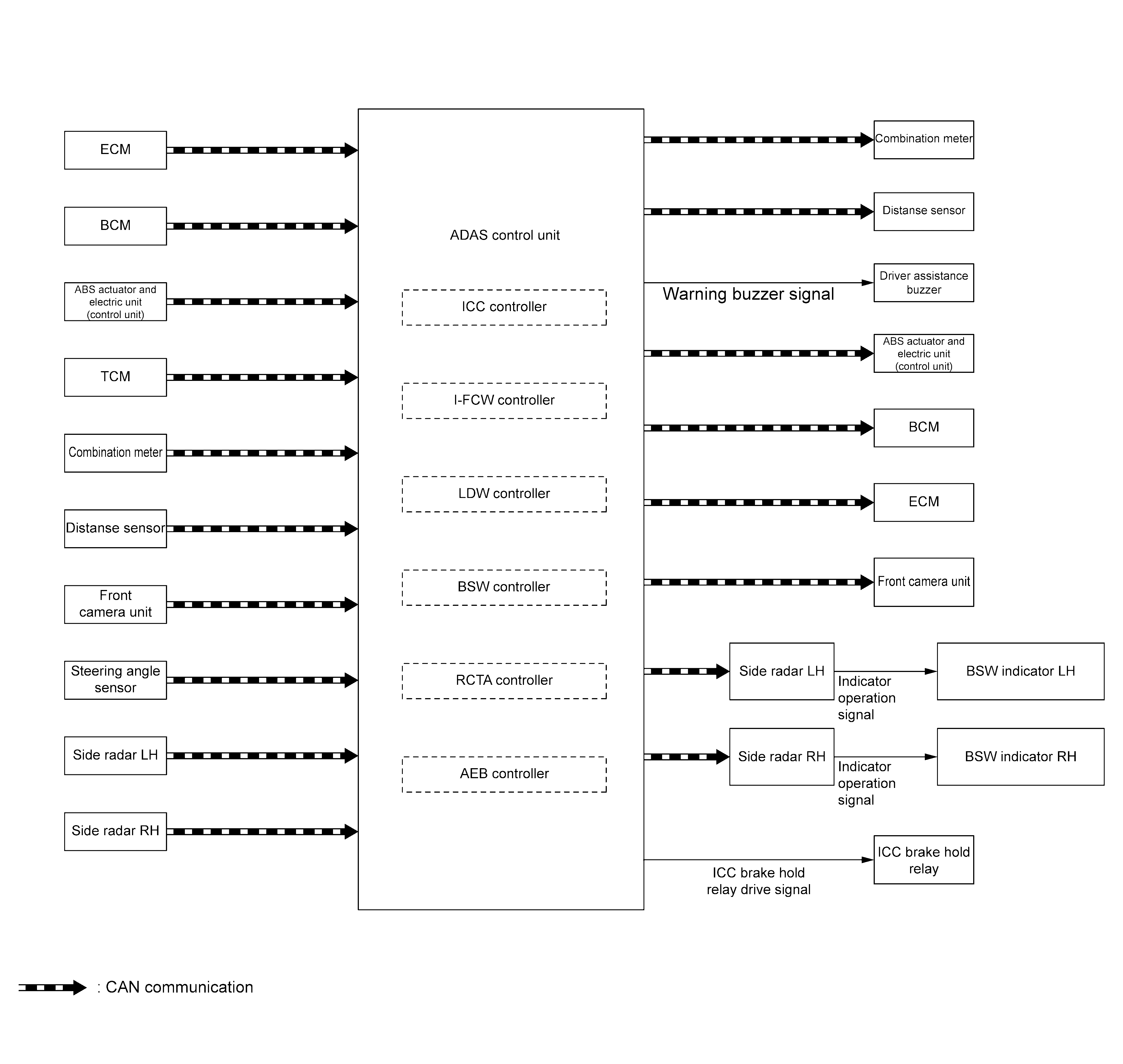

SYSTEM DIAGRAM

GNSDB154928Courtesy of NISSAN NORTH AMERICA, INC.

ADAS CONTROL UNIT INPUT/OUTPUT SIGNAL ITEM

Input Signal Item

Transmit unit Signal name Description
ECM CAN communication Idle switch signal Receives idle position state (ON/OFF)
Closed throttle position signal Receives idle position state (ON/OFF)
Accelerator pedal position signal Receives accelerator pedal position (angle)
ICC prohibition signal Receives an operable/inoperable state of the ICC system
Engine speed signal Receives engine speed
ICC steering switch signal MAIN switch signal Receives the operational state of the ICC steering switch
SET/COAST switch signal
CANCEL switch signal
RESUME/ACCELERATE switch signal
DISTANCE switch signal
Dynamic driver assistance switch signal
Stop lamp switch signal Receives an operational state of the brake pedal
Brake pedal position switch signal Receives an operational state of the brake pedal
TCM CAN communication Input speed signal Receives the number of revolutions of input shaft
Current gear position signal Receives a current gear position
Shift position signal Receives a select lever position
Output shaft revolution signal Receives the number of revolutions of output shaft
ABS actuator and electric unit (control unit) CAN communication ABS malfunction signal Receives a malfunction state of ABS
ABS operation signal Receives an operational state of ABS
ABS warning lamp signal Receives an ON/OFF state of ABS warning lamp
TCS malfunction signal Receives a malfunction state of TCS
TCS operation signal Receives an operational state of TCS
VDC OFF switch signal Receives an ON/OFF state of VDC
VDC malfunction signal Receives a malfunction state of VDC
VDC operation signal Receives an operational state of VDC
Vehicle speed signal (ABS) Receives wheel speeds of four wheels
Yaw rate signal Receives yaw rate acting on the vehicle
Side G sensor signal Receives lateral G acting on the vehicle
Stop lamp switch signal Receives an operational state of the brake pedal
Combination meter CAN communication Parking brake switch signal Receives an operational state of the parking brake
BCM CAN communication Front wiper request signal Receives an operational state of front wiper (s)
Turn indicator signal Receives an operational state of the turn signal lamp and the hazard lamp
Dimmer signal Receives ON/OFF state of dimmer signal
Position light request signal Receives an operational state of tail lamp
Stop lamp switch signal Receives an operational state of the brake pedal
Steering angle sensor CAN communication Steering angle sensor malfunction signal Receives a malfunction state of steering angle sensor
Steering angle sensor signal Receives the number of revolutions, turning direction of the steering wheel
Steering angle speed signal Receives the turning angle speed of the steering wheel
Display control unit CAN communication System selection signal Receives a selection state of each item in "Driving Aids" selected with the integral switch
Distance sensor ITS communication Distance sensor signal Receives detection results, such as the presence or absence of a leading vehicle and distance from the vehicle
Lane camera unit ITS communication Detected lane condition signal Receives detection results of lane marker
Side radar LH, RH ITS communication Vehicle detection signal Receives vehicle detection condition of detection zone
Sonar control unit ITS communication Rear object detection signal Receives objects detection result of rear area behind vehicle

Output Signal Item

Reception unit Signal name Description
ECM CAN communication ICC operation signal Transmits an ICC operation signal necessary for intelligent cruise control
ABS actuator and electric unit CAN communication Brake fluid pressure control signal Transmits a brake fluid pressure control signal to activates the brake
Target yaw moment signal Transmits a target yaw moment signal to generate yaw moment to the vehicle
Combination meter CAN communication Meter display signal Vehicle ahead detection indicator signal Transmits a signal to display a state of the system on the information display
Set vehicle speed indicator signal
Set distance indicator signal
SET switch indicator signal
MAIN switch indicator signal

AEB system display signal
I-FCW system display signal
LDW system display signal

BSW system display signal


AEB warning lamp signal
  • Transmits a signal to turn ON the lamp
  • Transmits an ON/OFF state of the Automatic Emergency Braking
Distance sensor ITS communication Vehicle speed signal Transmits a vehicle speed calculated by the ADAS control unit
Steering angle sensor signal Transmits a steering angle sensor signal received from the steering angle sensor
Side radar LH, RH ITS communication Vehicle speed signal Transmits a vehicle speed calculated by the ADAS control unit
Blind Spot Warning/Blind Spot Intervention indicator signal Transmits a Blind Spot Warning/Blind Spot Intervention indicator signal to turn ON the Blind Spot Warning/Blind Spot Intervention indicator
Blind Spot Warning/Blind Spot Intervention indicator dimmer signal Transmits a Blind Spot Warning/Blind Spot Intervention indicator dimmer signal to dimmer Blind Spot Warning/Blind Spot Intervention indicator
Sonar control unit ITS communication Buzzer drive signal Transmits a buzzer drive signal to activate buzzer
ICC brake hold relay ICC brake hold relay drive signal Activates the brake hold relay and turns ON the stop lamp

DESCRIPTION

System Reference
Intelligent Cruise Control (ICC) System Description
Automatic Emergency Braking (AEB) System Description
Intelligent Forward Collision Warning (I-FCW) System Description
Lane Departure Warning (LDW) Lane Departure Warning: System Description
Blind Spot Warning (BSW) System Description
