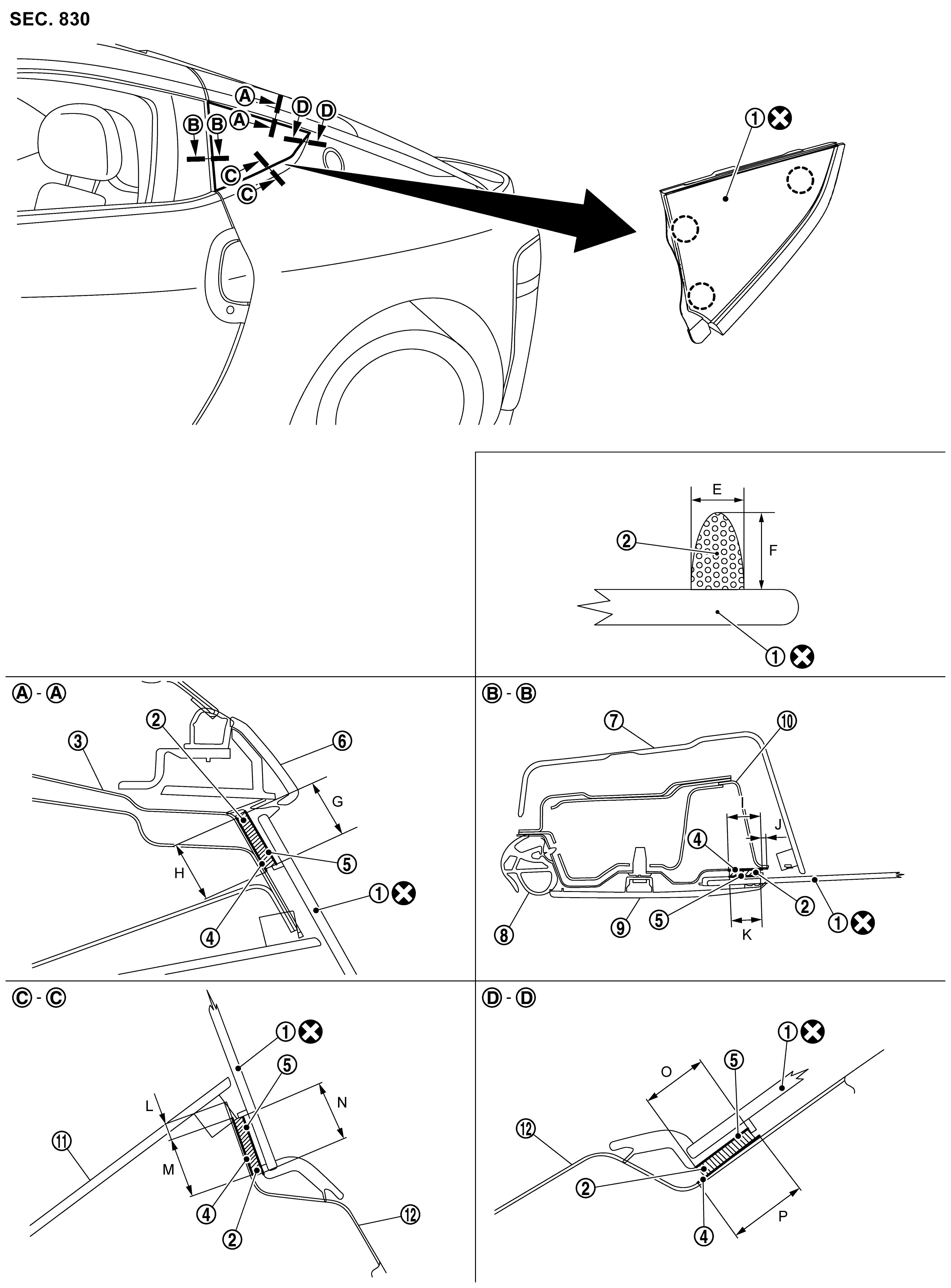

Exploded View

GNSDB155802Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Side window glass assembly SYMBOL Adhesive SYMBOL Rear fender
SYMBOL Painter surface primer SYMBOL Glass surface primer SYMBOL Rear fender molding
SYMBOL Rear pillar finisher SYMBOL Body side weather-strip SYMBOL Lock pillar finisher
SYMBOL Panel side inner SYMBOL Rear pillar finisher SYMBOL Rear fender
SYMBOL : Clip
SYMBOL : Always replace after every disassembly.

Unit: mm (in)

Portion Primer range Adhesive range
E F
Side window glass - Body side outer panel SYMBOL -SYMBOL G 20.0 (0.79) 7.0 (0.28) +2.0 (0.08) 12.0 (0.47) +2.0 (0.08)
H 20.0 (0.79)
SYMBOL -SYMBOL I 20.0 (0.79)
J 2.8 (0.11)
K 18.0 (0.71)
SYMBOL -SYMBOL L 5.7 (0.22)
M 20.0 (0.79)
N 20.0 (0.79)
SYMBOL -SYMBOL H 17.0 (0.67)
I 20.0 (0.79)
