System Description
›
Description
›

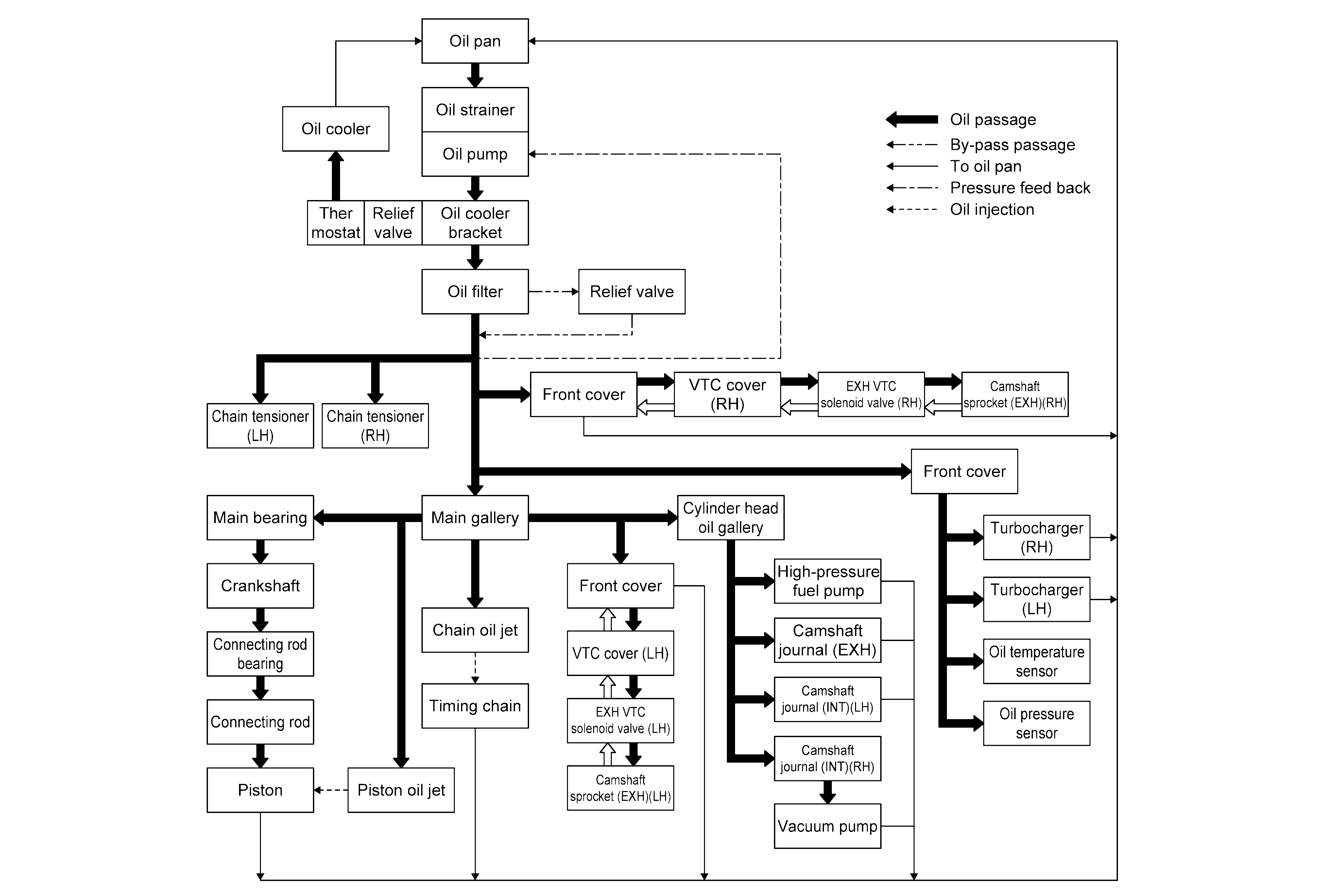

Engine Lubrication System Schematic
Engine Lubrication System Schematic
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
