Exploded View

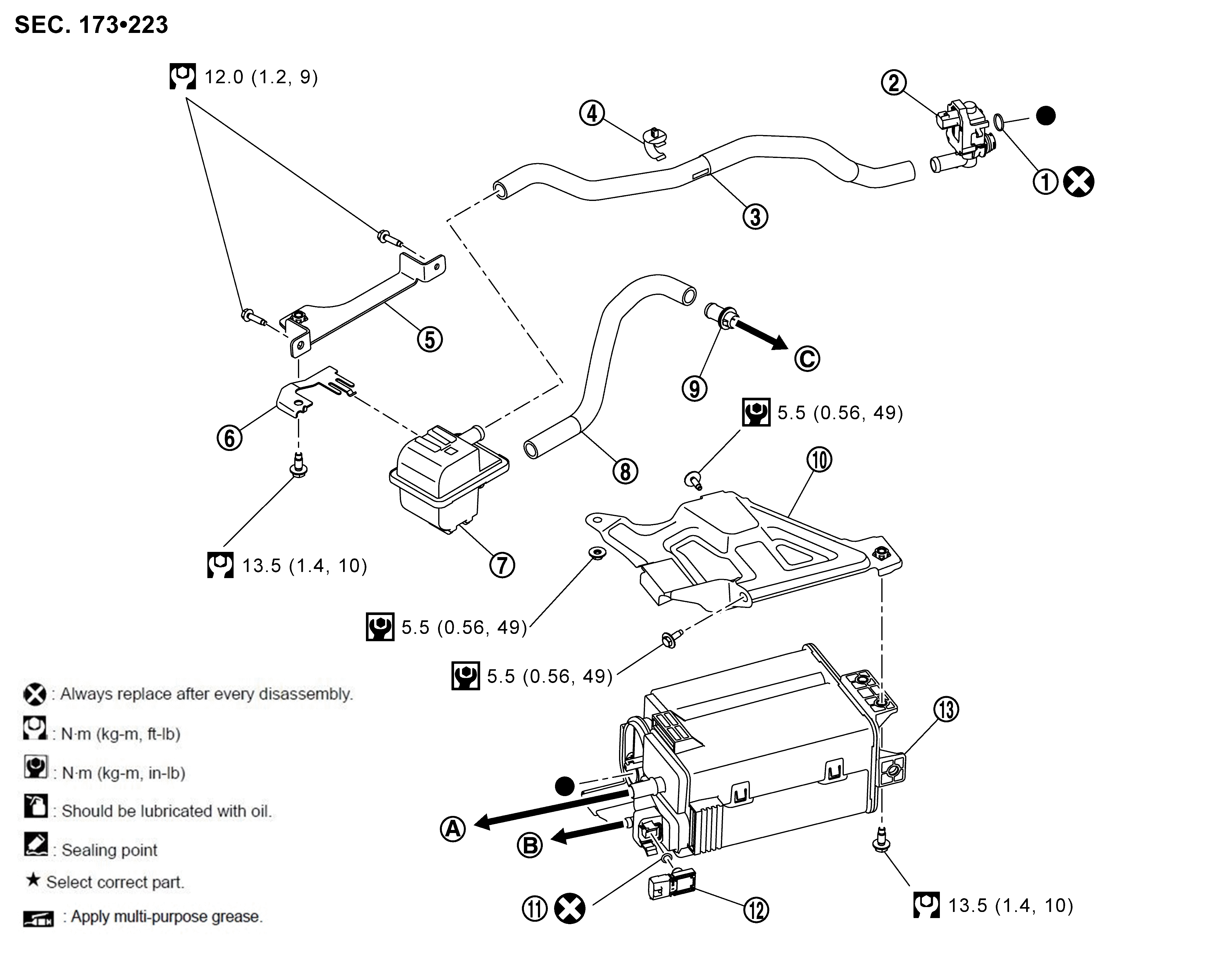

Fig 1: EVAP Canister With Torque Specifications
GNSDB155231Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL O-ring SYMBOL EVAP canister vent control valve SYMBOL Vent hose 1
SYMBOL CLIP SYMBOL Bracket 1 SYMBOL Bracket 2
SYMBOL Canister filter SYMBOL Vent hose 2 SYMBOL Connector
SYMBOL EVAP canister bracket SYMBOL O-ring SYMBOL EVAP control system pressure sensor
SYMBOL EVAP canister
SYMBOL To fuel tank Refer to SYMBOL To EVAP canister purge volume control solenoid valve Refer to SYMBOL To floor panel Refer to
