Exploded View

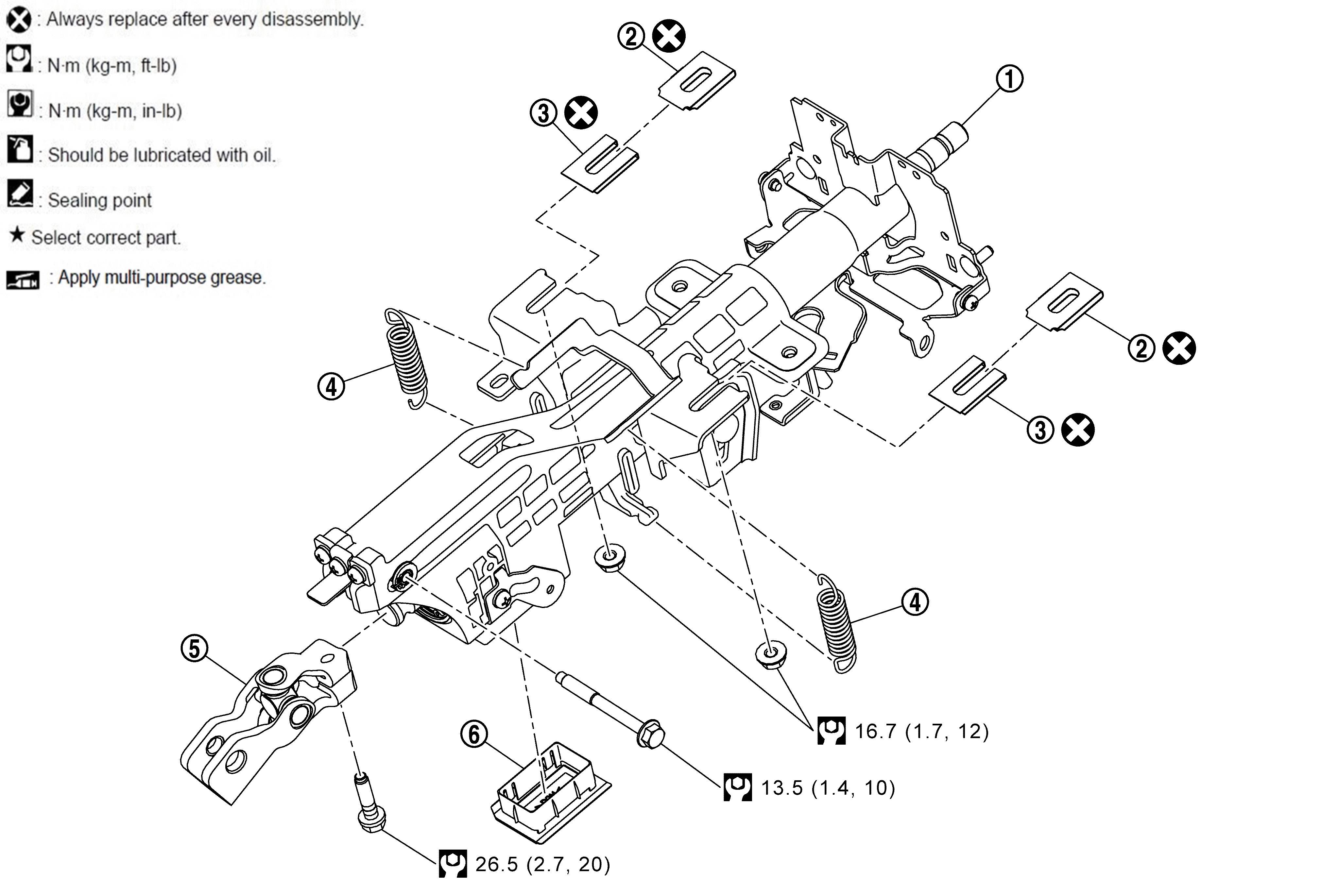

Fig 1: Steering Column With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Steering column assembly		Slide plate		Slide plate
	Spring		Upper joint		Dust cover

: N.m (kg-m, ft-lb)
: Always replace after every disassembly.
