Exploded View

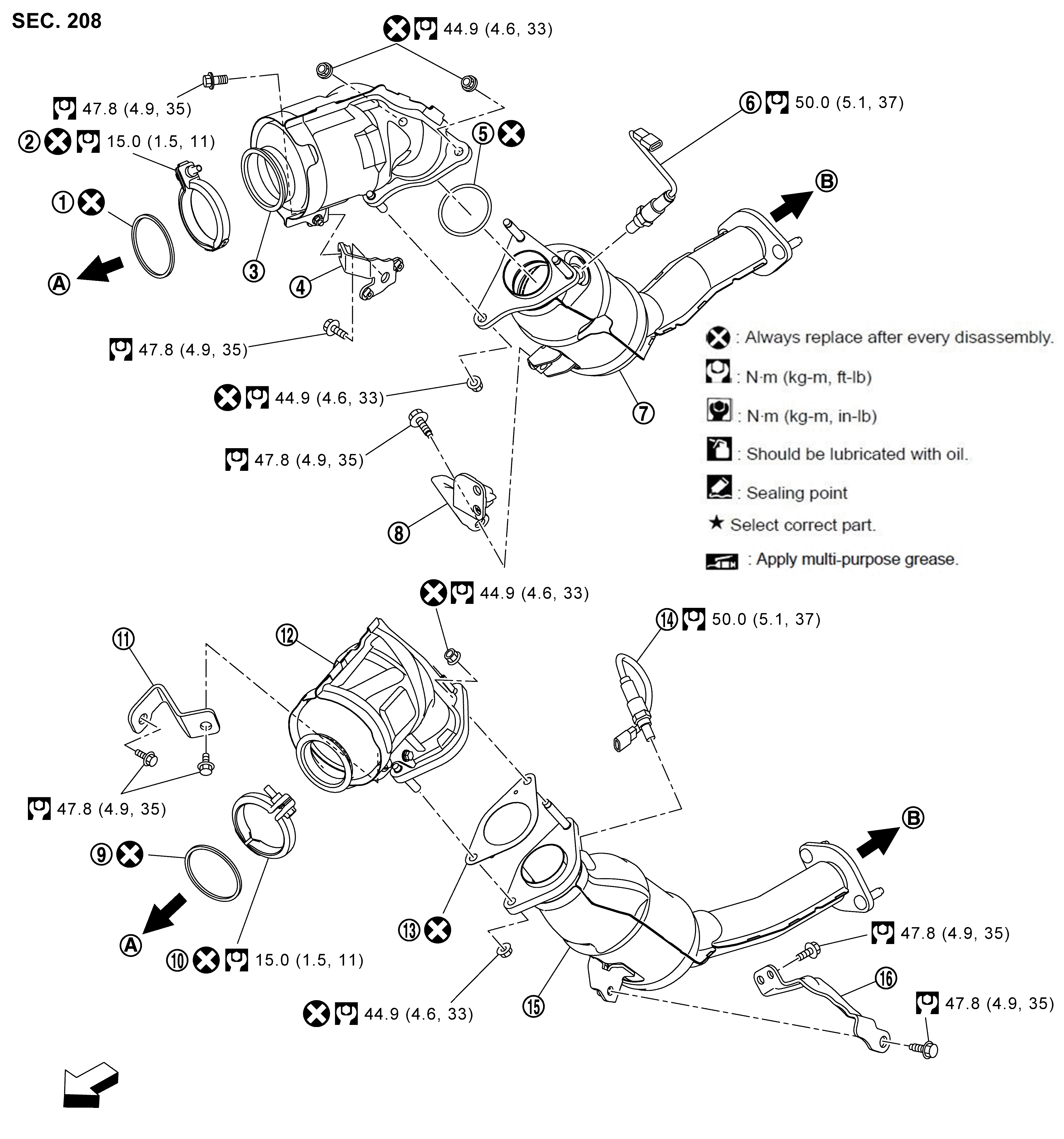

Fig 1: Catalyst With Torque Specifications
GNSDB147589Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Gasket SYMBOL Clamp SYMBOL Catalyst converter (bank 1)
SYMBOL Catalyst converter support bracket (bank 1) SYMBOL Gasket SYMBOL Heated oxygen sensor (bank 1)
SYMBOL 2nd catalyst converter (bank 1) SYMBOL Bracket SYMBOL Gasket
SYMBOL Clamp SYMBOL Catalyst converter support bracket (bank 2) SYMBOL Catalyst converter (bank 2)
SYMBOL Gasket SYMBOL Heated oxygen sensor (bank 2) SYMBOL 2nd catalyst converter (bank 2)
SYMBOL Bracket
SYMBOL To turbocharger assembly. Refer to Exploded View . SYMBOL To exhaust front tube. Refer to Exploded View .
SYMBOL : Engine front
SYMBOL : Always replace after every disassembly.
SYMBOL : N.m (kg-m, ft-lb)
