Exploded View

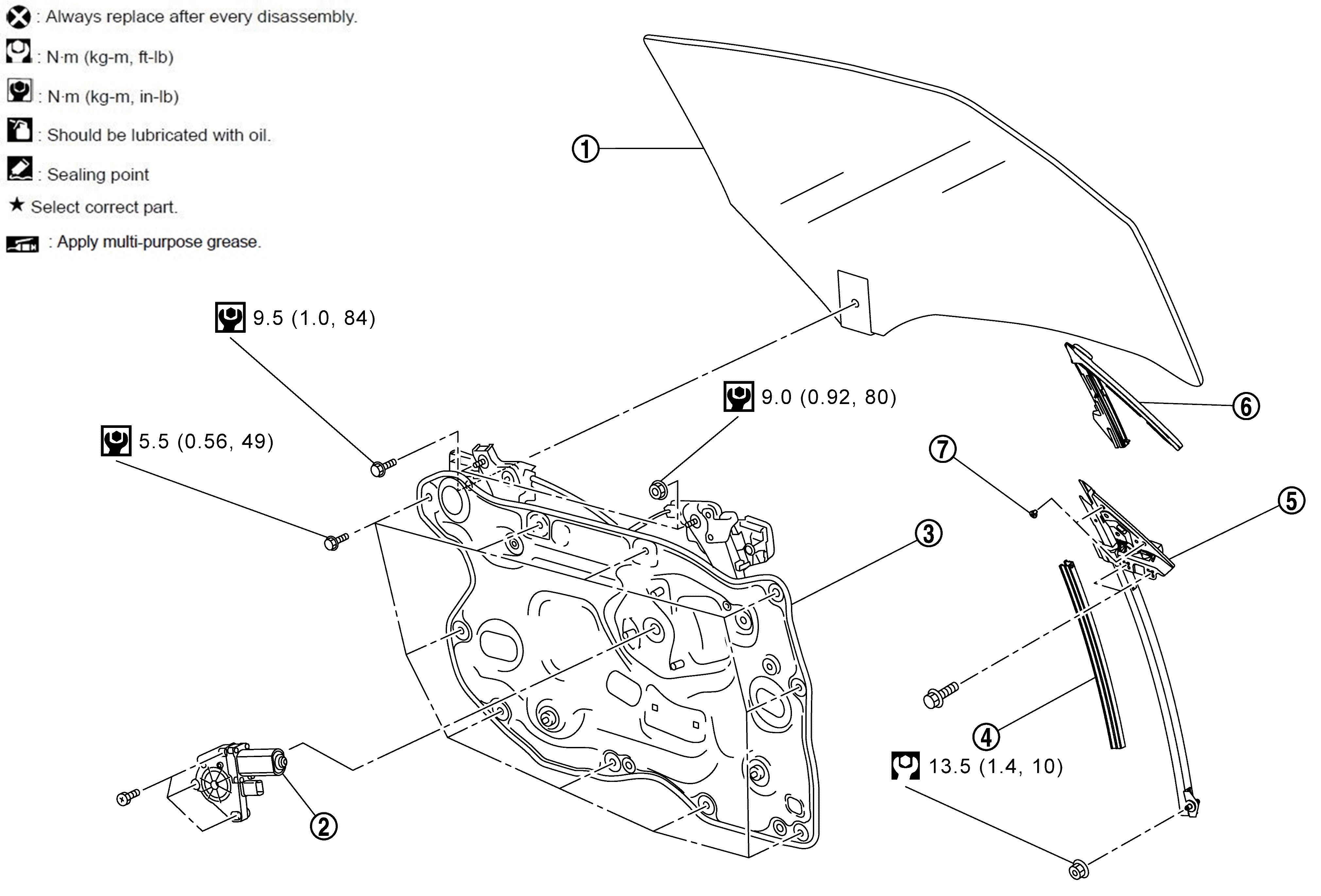

Fig 1: Door Regulator With Torque Specifications
GNSDB155404Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Door glass assembly SYMBOL Power window motor SYMBOL Module assembly
SYMBOL Door weather-strip lower SYMBOL Corner piece assembly SYMBOL Door weather-strip upper
SYMBOL Clip
SYMBOL : N.m (kg-m, in-lb)
