System Description

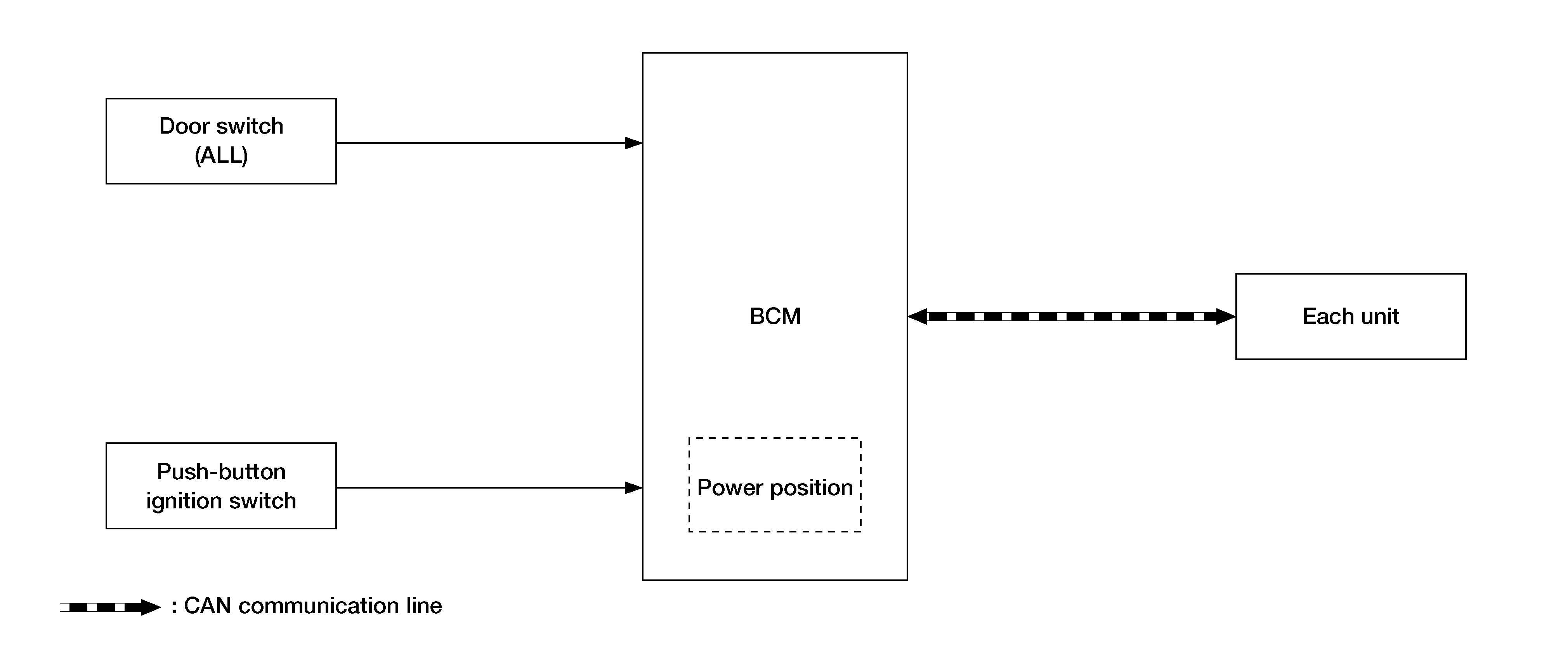

SYSTEM DIAGRAM
OUTLINE
The BCM has the signal transmission function that outputs/transmits each input/received signal to each unit.
Signal transmission function list
| Signal name | Input | Output | Description |
|---|---|---|---|
| Push-button ignition switch signal | Push-button ignition switch | Each unit (CAN) | Inputs the push-button ignition switch signal and transmits it via CAN communication. |
| Door switch signal | Door switch (ALL) | Each unit (CAN) | Inputs the door switch signal and transmits it via CAN communication. |
