Component Location

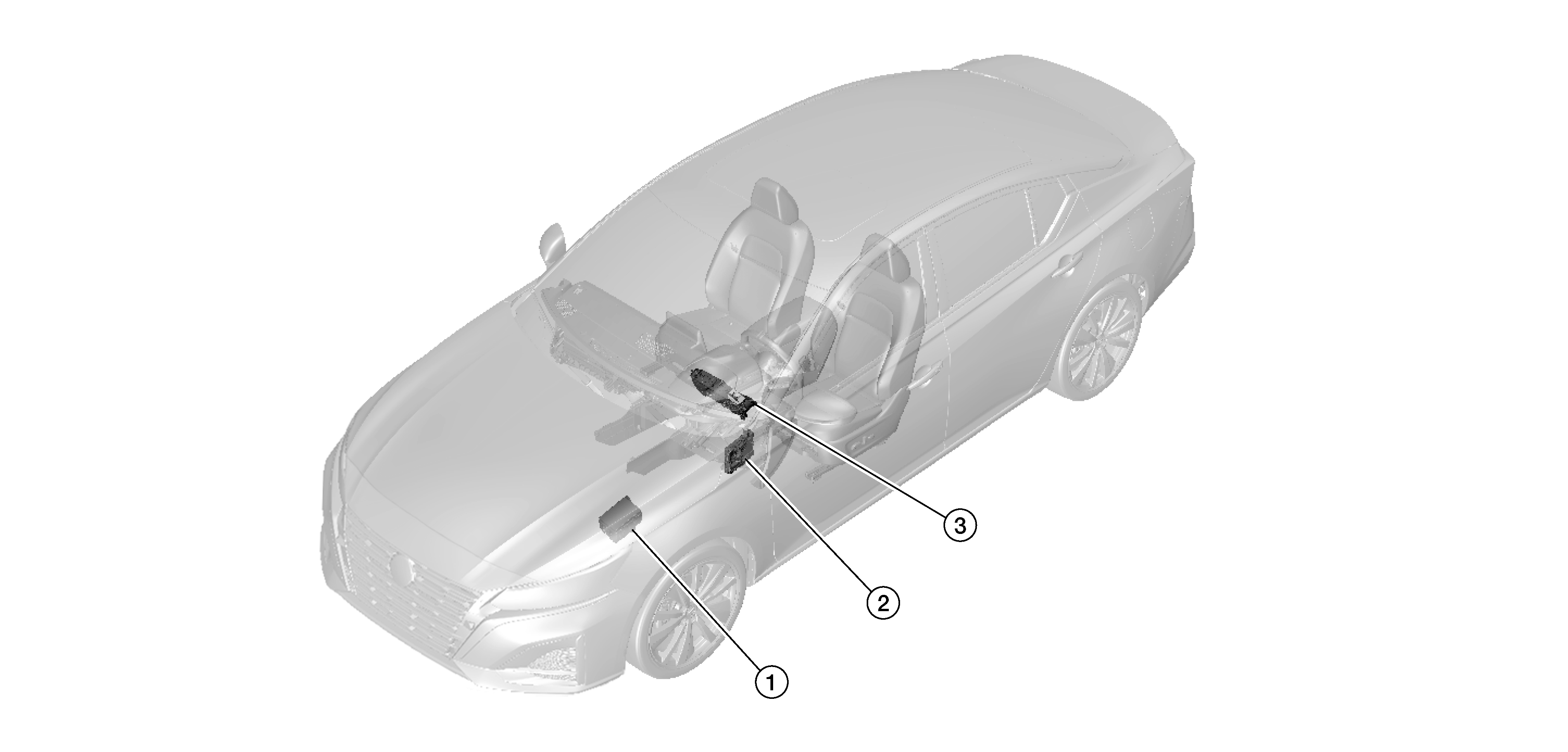

GNSDB104493Courtesy of NISSAN NORTH AMERICA, INC.
No. Component Function
1. IPDM E/R (Intelligent Power Distribution Module Engine Room) Refer to System Description .
2. BCM (Body Control Module) Refer to System Description .
3. Combination meter Refer to System Description (type A) or System Description (type B).
