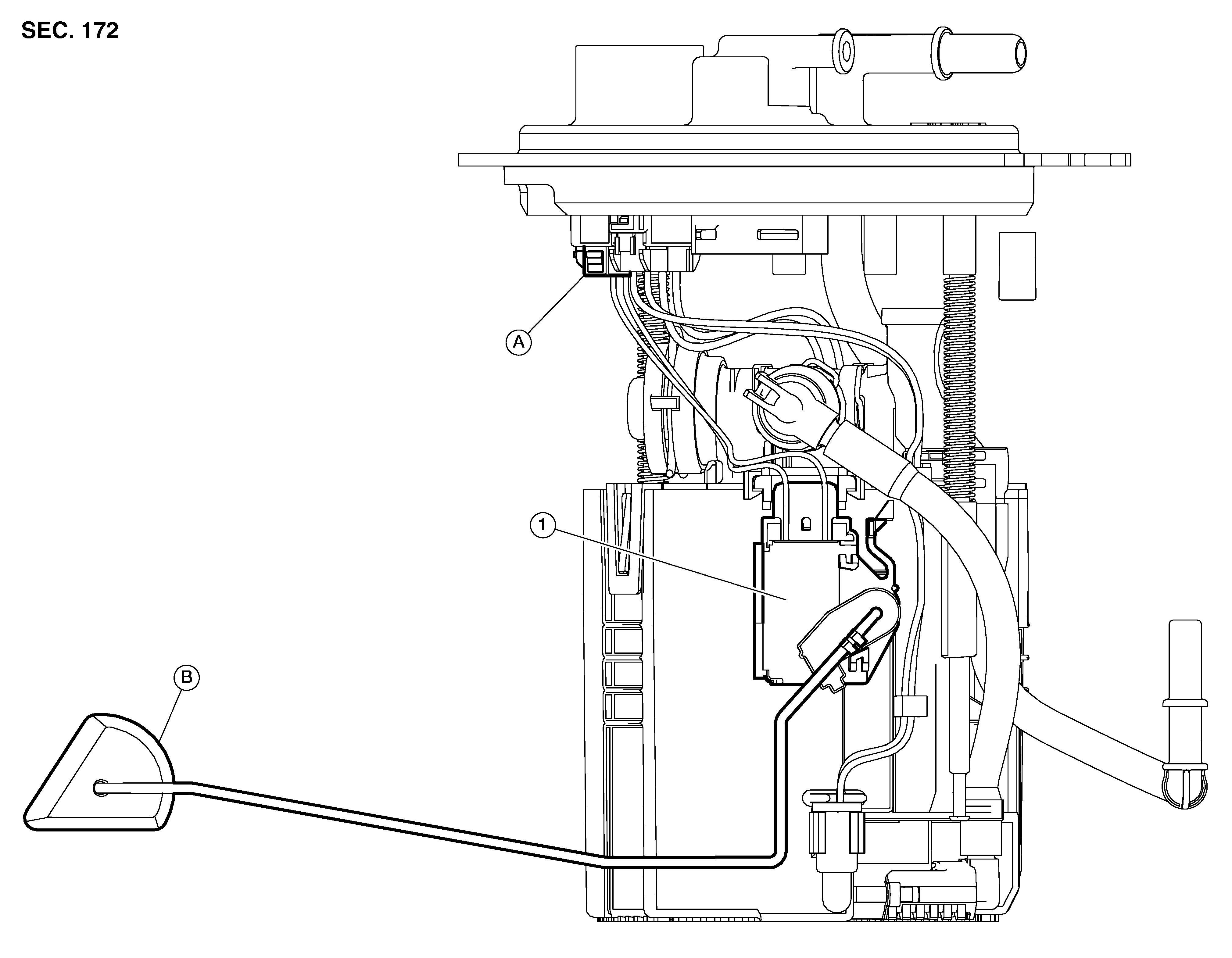

FUEL LEVEL SENSOR UNIT : Exploded View

GNSDB103814

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Fuel level sensor unit

A.

Harness connector

B.

Float arm assembly
