Removal and Installation

REMOVAL

CAUTION:

Never damage the each part.
When removing, always use a remover tool that is made of plastic to prevent damage to the parts.

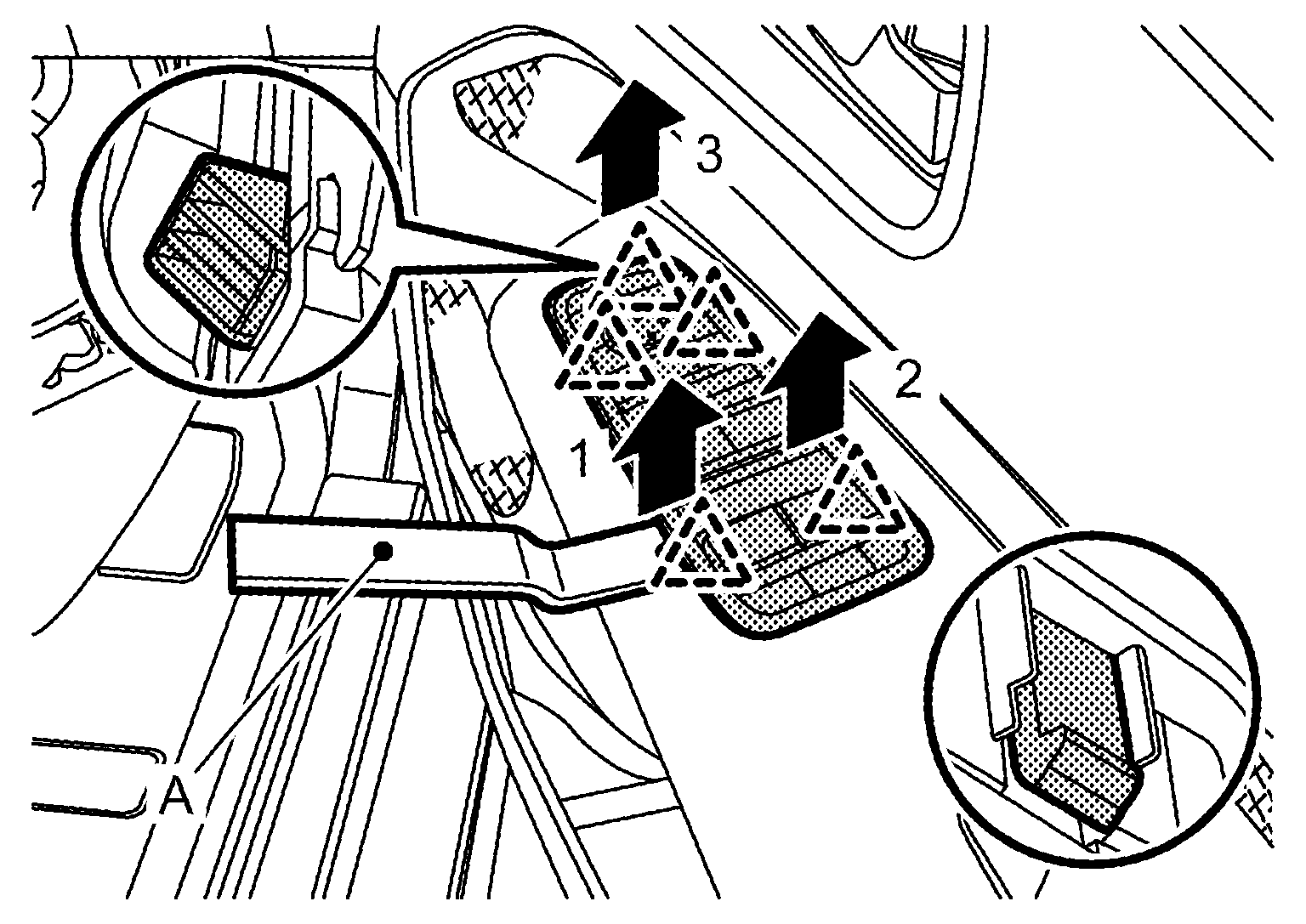

Disengage power window switch finisher fixing pawls using a remover tool (A) according to numerical order 1→3 indicated by arrows as shown in the figure, below.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:
Never bend the fixing pawl of power window switch finisher.

: Pawl
Disconnect power window main switch harness connector and door lock switch harness connector, and then remove power window switch finisher, power window main switch and door lock switch as a set.
CAUTION:
Power window main switch and power window switch finisher must not be disassembled.

INSTALLATION

Install in the reverse order of removal.
