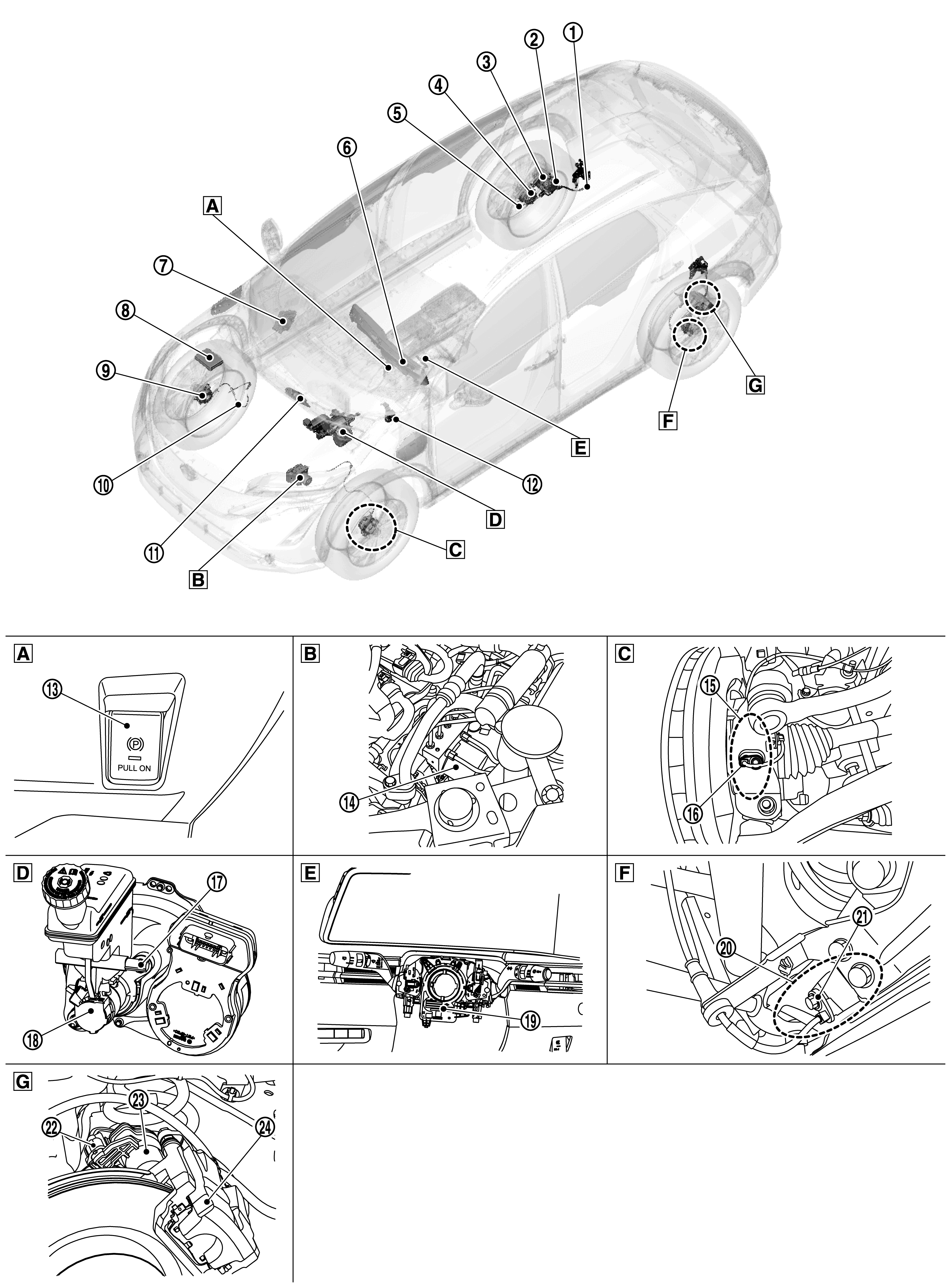

Parking brake actuator harness (RH) |
 |
Parking brake actuator (RH) |
 |
Rear brake caliper assembly (RH) |
 |
Rear RH sensor rotor |
 |
Rear RH wheel sensor |
 |
Combination meter Refer to Component Location
for detailed installation location. |
 |
BCM Refer to Component Location
for detailed installation location. |
 |
IPDM E/R Refer to Component Location
for detailed installation location. |
 |
Front RH sensor rotor |
 |
Front RH wheel sensor |
 |
VCM Refer to Component Location
for detailed installation location. |
 |
Chassis control module Refer to Component Location
for detailed installation location. |
 |
Parking brake switch |
 |
ABS actuator and electric unit (control unit) |
 |
Front LH sensor rotor |
 |
Front LH wheel sensor |
 |
Brake fluid level switch |
 |
Electrically-driven intelligent brake unit |
 |
Steering angle sensor |
 |
Rear LH sensor rotor |
 |
Rear LH wheel sensor |
 |
Parking brake actuator harness (LH) |
 |
Parking brake actuator (LH) |
 |
Rear brake caliper assembly (LH) |
