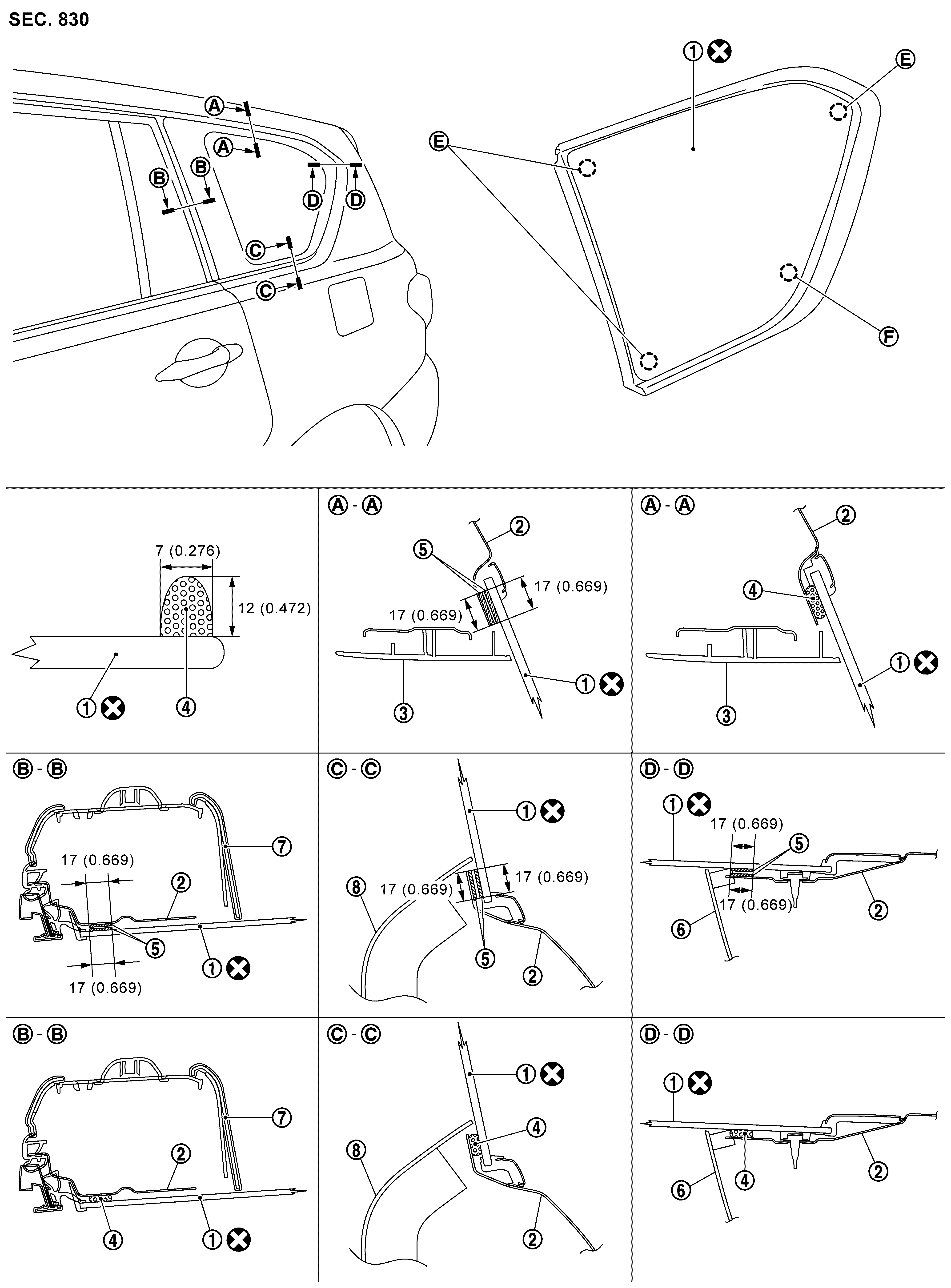

| 1. |
Side window glass |
2. |
Body side outer panel |
3. |
Luggage side upper finisher |
| 4. |
Adhesive |
5. |
Primer |
6. |
Back pillar garnish |
| 7. |
Rear pillar finisher |
8. |
Luggage side lower finisher |
| E. |
Clip |
| F. |
Clip (If equipped) |
 |
: Always replace after every disassembly. |
| Unit |
: mm (in) |
