System Description

Courtesy of NISSAN NORTH AMERICA, INC.

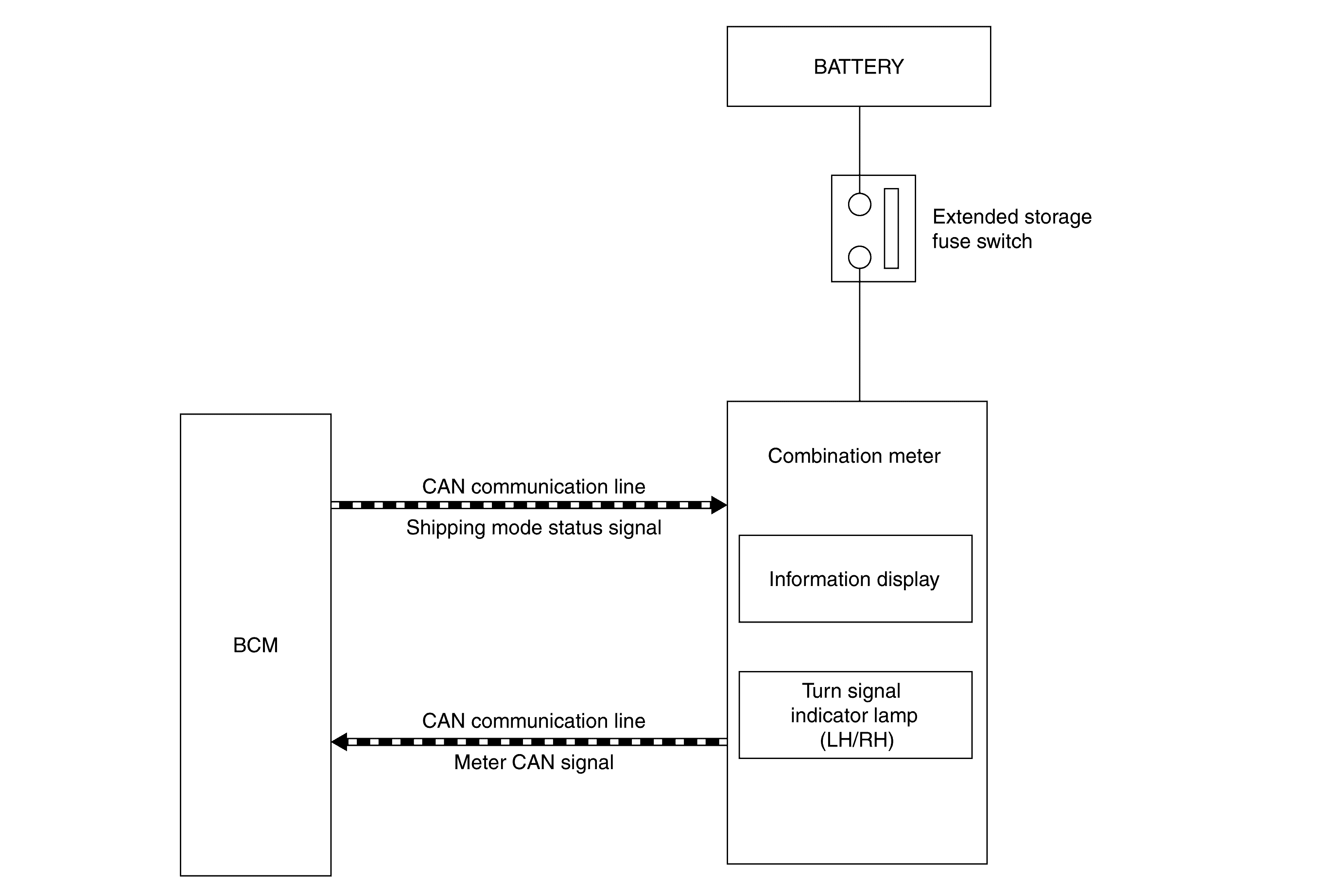

• The combination meter transmits meter CAN signal *1 to BCM via CAN communication, when the extended storage fuse switch is ON.
• BCM switches the status (shipping mode or normal mode) by itself according to the meter CAN signal *1 from combination meter, and transmits shipping mode status signal to combination meter via CAN communication.
• The combination meter displays extended storage fuse warning message *2 on the information display, and turns the turn signal indicator lamp (LH/RH) ON, when BCM is in shipping mode.
• BCM control functions are limited in shipping mode. Refer to Symptom Description .

*1: Odometer signal, wake up signal and each signal.

*2: When shipping mode function operates, "SHIPPING MODE ON PUSH STORAGE FUSE" is displayed.
