System Description

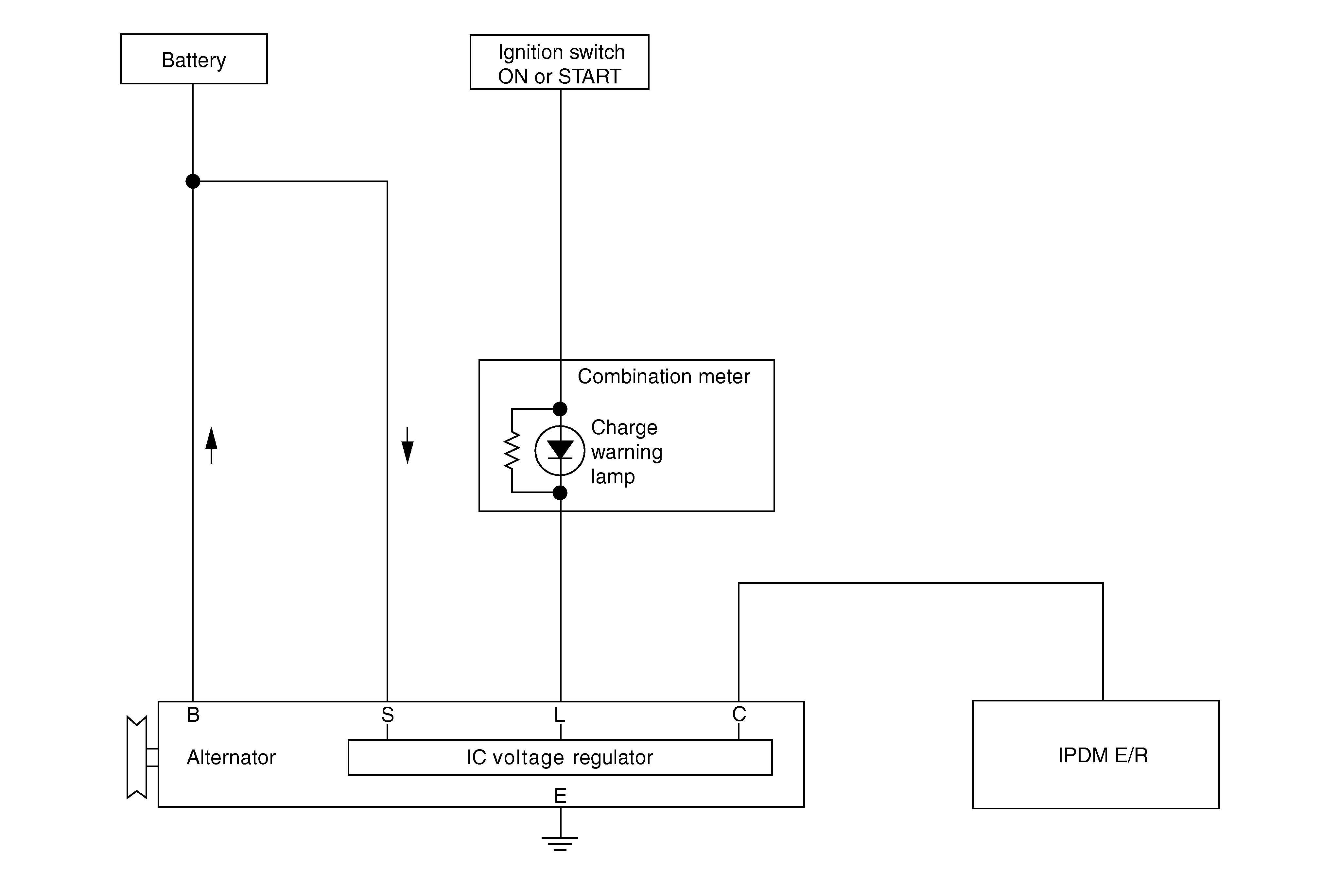

System Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

The alternator provides DC voltage to operate the vehicle's electrical system and to keep the battery charged. The voltage output is controlled by the IC voltage regulator.
