System Description

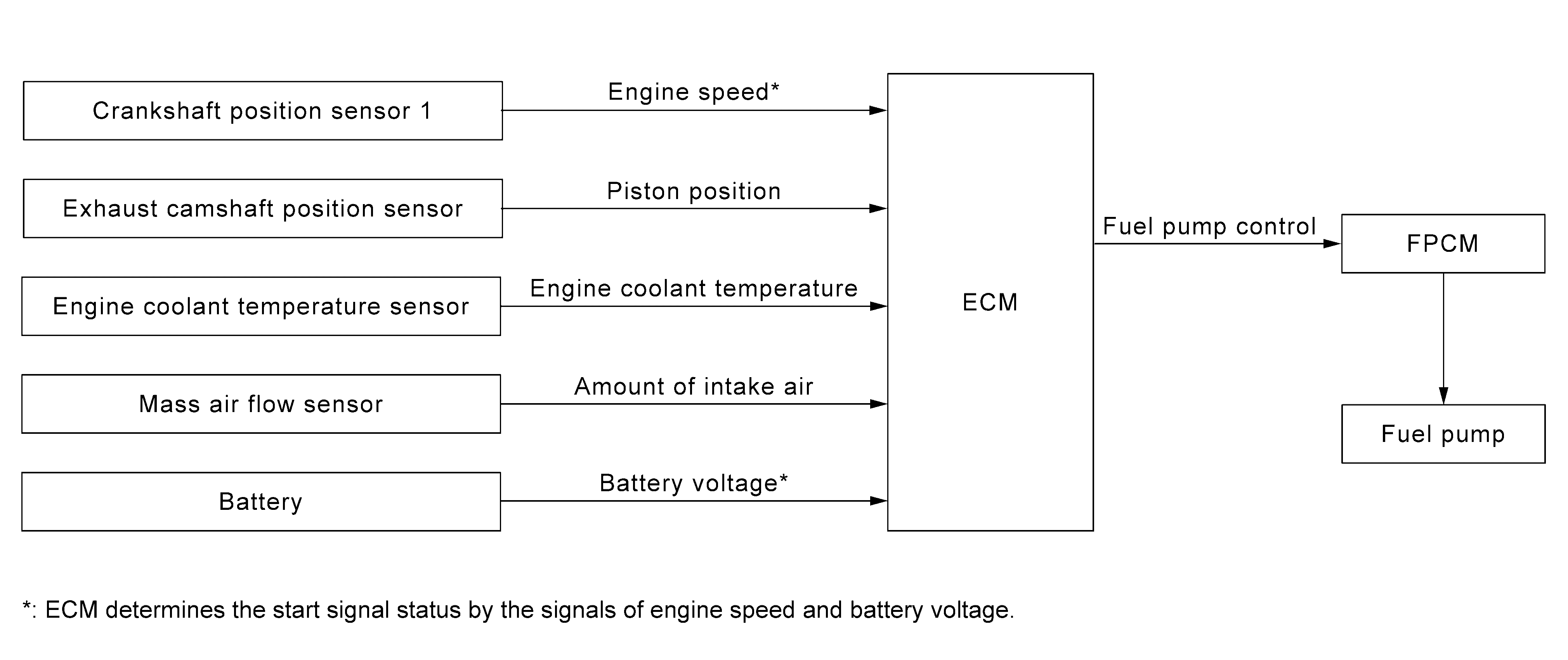

SYSTEM DIAGRAM
SYSTEM DESCRIPTION
The fuel pump control module (FPCM) controls the discharging volume of the fuel pump by the FPCM control signals depending on driving conditions.
| Conditions | Supplied voltage (Approx.) |
|---|---|
| For a few seconds after turning ignition switch ON | 12.5 - 13.5 V |
| Except the above | 8.6 - 13.5 V |
