System Description

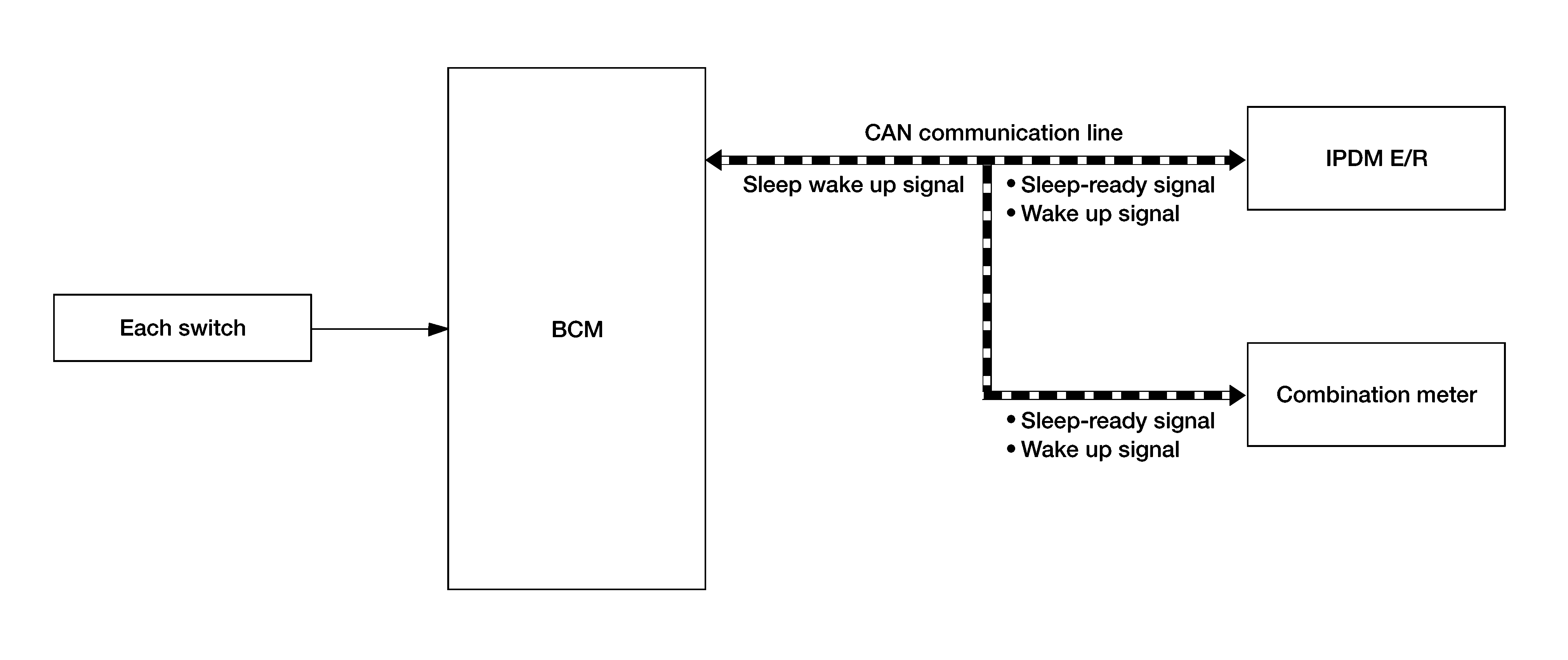

SYSTEM DIAGRAM

Courtesy of NISSAN NORTH AMERICA, INC.

INPUT SIGNAL AND OUTPUT SIGNAL

Major signal transmission between each unit via communication lines is shown in the following table:

Component parts	Signal description
BCM	BCM transmits the sleep wake up signal (sleep) to each unit according to the vehicle status. BCM transmits the sleep wake up signal (wake up) to each unit according to the vehicle status. BCM receives the sleep-ready signal (ready) from each unit via CAN communication. BCM receives the wake up signal from each unit via CAN communication.
IPDM E/R	Transmits the sleep-ready signal (ready) to the BCM according to the unit status. Transmits the wake up signal to the BCM according to the unit status. Receives the sleep wake up signal (sleep) from the BCM via CAN communication. Receives the sleep wake up signal (wake up) from the BCM via CAN communication.
Combination meter

OUTLINE

• BCM incorporates a power consumption control function that reduces the power consumption according to the vehicle status.
• BCM switches the status (control mode) by itself with the power saving control function. It performs the sleep request to each unit (IPDM E/R and combination meter) that operate with the ignition switch OFF.

  Normal mode (wake-up)

  • CAN communication is normally performed with other units
  • Each control with BCM is operating properly

  CAN communication sleep mode (CAN sleep)

  • CAN transmission is stopped
  • Control with BCM only is operating

  Low power consumption mode (BCM sleep)

  • Low power consumption control is active
  • CAN transmission is stopped

LOW POWER CONSUMPTION CONTROL WITH BCM

BCM reduces the power consumption with the following operation in the low power consumption mode:

• The reading interval of the each switches changes from 10 ms interval to 20 ms interval.

Sleep mode activation

• BCM receives the sleep-ready signal (ready) from IPDM E/R and combination meter via CAN communication.
• BCM transmits the sleep wake up signal (sleep) to each unit when all of the CAN sleep conditions are fulfilled.
• Each unit stops the transmission of CAN communication with the sleep wake up signal. BCM is in CAN communication sleep mode.
• BCM is in the low power consumption mode and perform the low power consumption control when all of the BCM sleep conditions are fulfilled with CAN sleep condition.

CAN sleep condition

BCM sleep condition

Receiving the sleep-ready signal (ready) from all units Ignition switch: OFF Vehicle security system alarm: No operation Warning lamp: No operation Intelligent Key warning buzzer: No operation Stop lamp switch: OFF Turn signal indicator lamp: No operation Exterior lamp: OFF Door lock status: No change CONSULT communication status: No communication Meter display signal: Non-transmission Door switch status: No change Rear window defogger: OFF

Interior room lamp battery saver: Time out RAP system: OFF Push-button ignition switch illumination: OFF NATS: No operation Remote keyless entry receiver communication status: No communication Tire pressure monitoring system: Stop

Wake-up operation

• BCM transmits the sleep wake up signal (wake up) to each unit when any of the CAN wake-up conditions are fulfilled. It changes from the low power consumption mode or the CAN communication sleep mode to the normal mode.
• Each unit starts the transmission of CAN communication with the sleep wake up signal. In addition, the combination meter transmits the wake up signal to BCM via CAN communication to report the CAN communication start.

BCM wake-up condition

CAN wake-up condition

Door unlock sensor: OFF → ON, ON → OFF Front door lock assembly LH: Lock or unlock Door lock switch: OFF → ON Door unlock switch: OFF → ON Remote keyless entry receiver: Receiving valid keyfob

Receiving the sleep-ready signal (not-ready) from any units Push-button ignition switch: OFF → ON Hazard switch: OFF → ON PASSING switch: OFF → ON, ON → OFF TAIL LAMP switch: OFF → ON Front door lock assembly LH (door switch) : OFF → ON, ON → OFF Front door lock assembly RH (door switch) : OFF → ON, ON → OFF Front door request switch LH: OFF → ON Front door request switch RH: OFF → ON Stop lamp switch signal: ON Remote keyless entry receiver: Receiving valid keyfob
