Engine Restart Bypass Relay
›
Exploded View
Exploded View

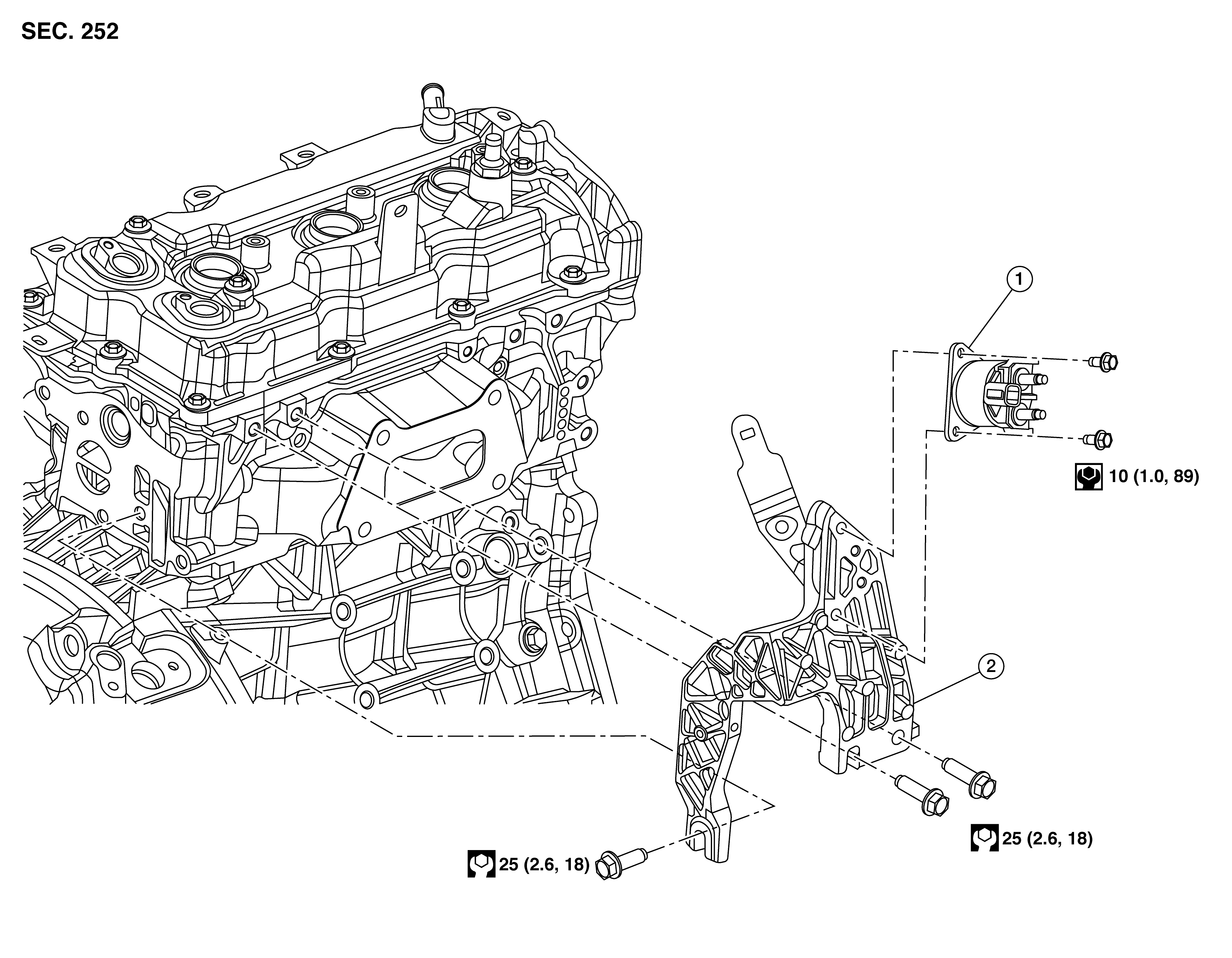

Fig 1: Engine Restart Bypass Relay With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Engine restart bypass relay
2.
Engine restart bypass relay bracket
