Component Location

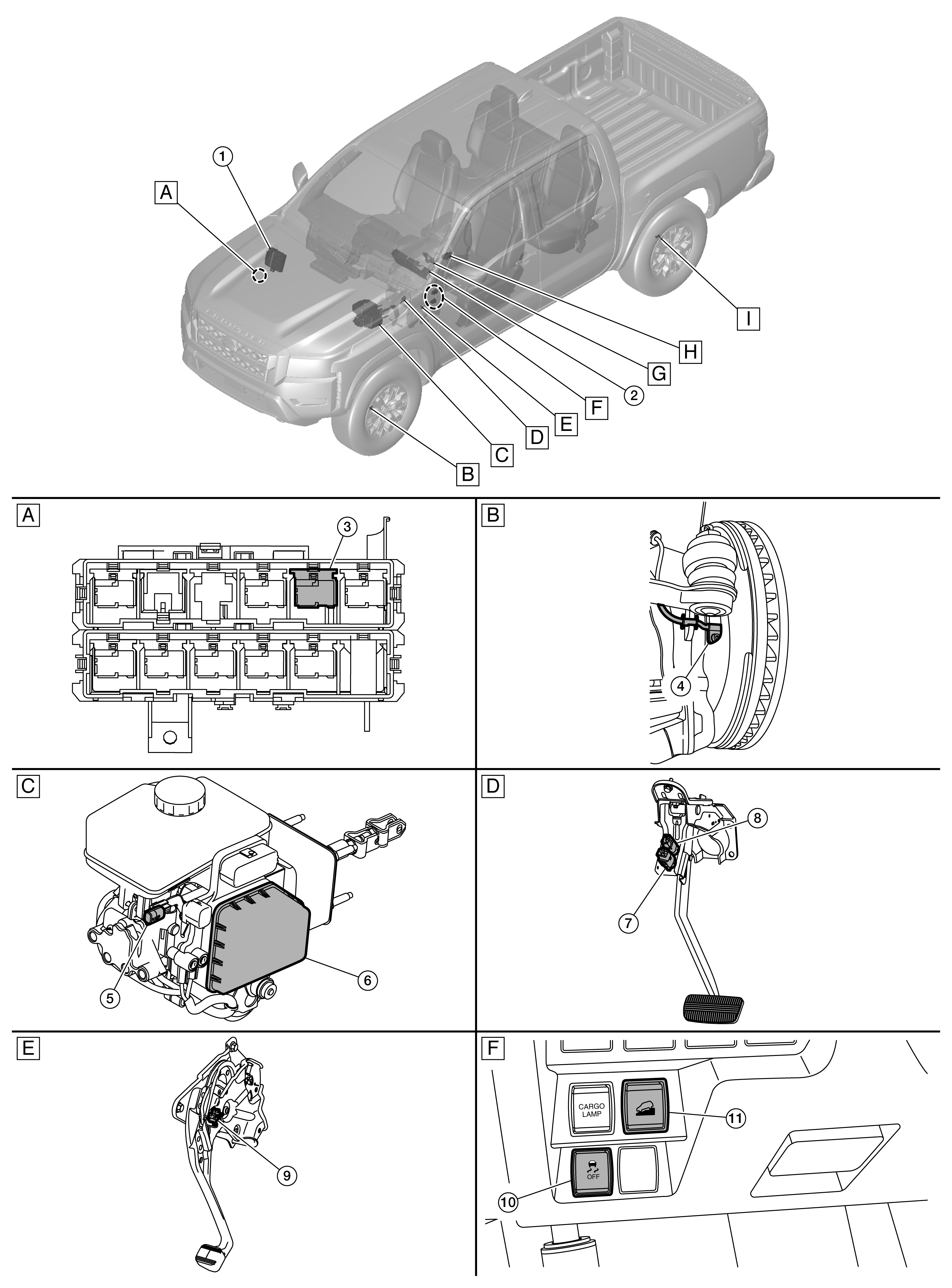

| A. | Engine room (RH) | B. | Front left wheel | C. | Engine room (LH) |
| D. | Brake pedal assembly (view of component removed) | E. | Parking brake pedal assembly (view of component removed) | F. | Left side of lower instrument panel |

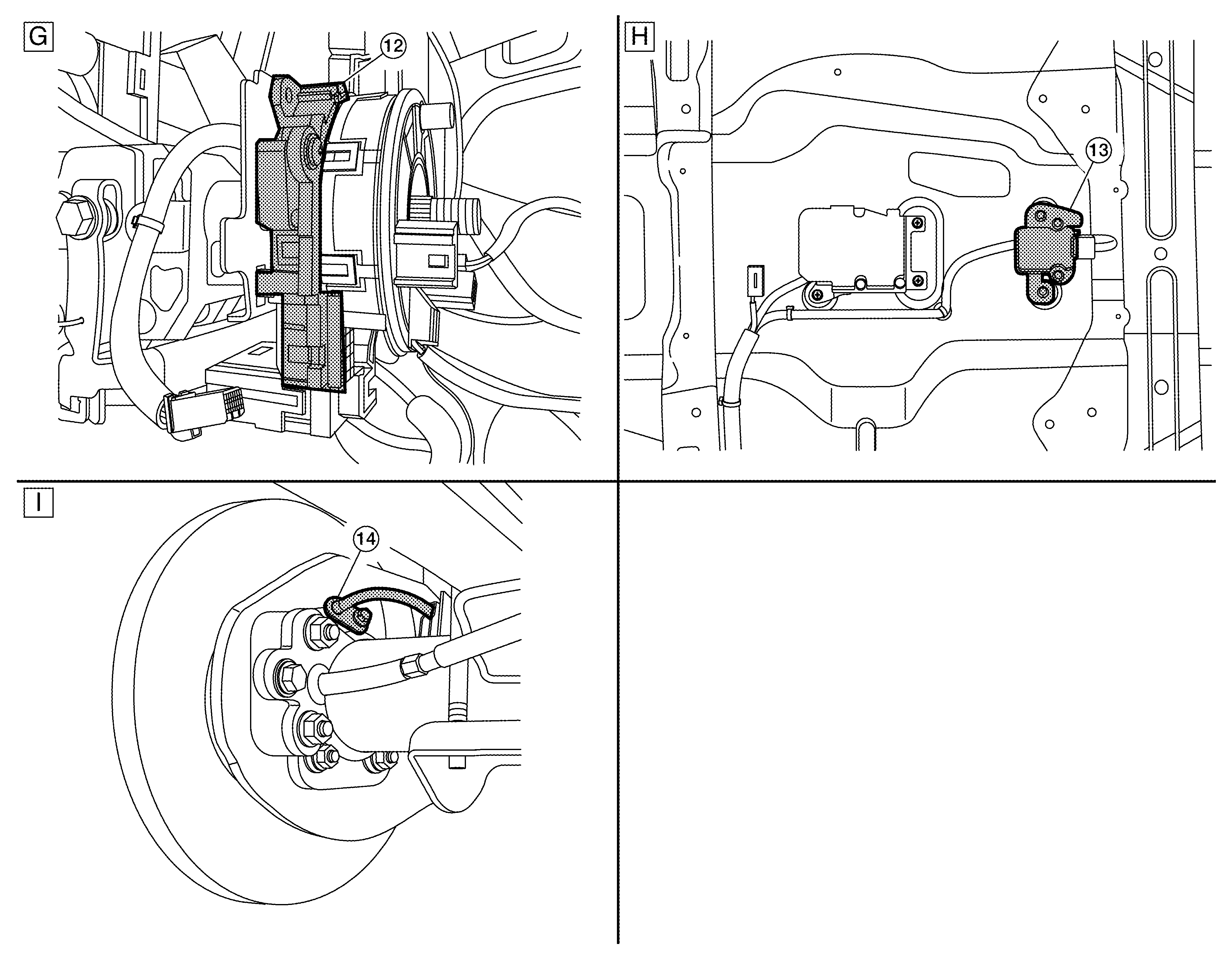

| G. | Steering column area (view with steering wheel and steering column cover removed) | H. | Center console area (view with center console removed) | I. | Rear left wheel |
| No. | Component | Function | |
|---|---|---|---|
| 1. | IPDM E/R (Intelligent Power Distribution Module Engine Room) | Supplies power to the ABS actuator and electric unit (control unit). Refer to System Description . | |
| 2. | Combination meter | Mainly transmits the parking brake switch signal to ABS actuator and electric unit (control unit) via CAN communication. Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN communication:
Refer to Component Location - Crew Cab or Component Location - King Cab® for detailed component location. |
|
| 3. | Stop lamp relay and ignition relay-2 | Refer to Stop Lamp Relay and ignition relay-2 . | |
| 4. | Front wheel sensor LH (RH similar) | Refer to Wheel Sensor and Sensor Rotor . | |
| 5. | Brake fluid level switch | Refer to Brake Fluid Level Switch . | |
| 6. | ABS (Anti-lock Braking System) actuator and electric unit (control unit) | Refer to ABS Actuator and Electric Unit (Control Unit) . | |
| 7. | Stop lamp switch | Detects the operation of brake pedal and transmits signal to ABS actuator and electric unit (control unit). Refer to Brake Pedal Position Switch / Stop Lamp Switch . | |
| 8. | Brake pedal position switch | Detects the operation of brake pedal and transmits signal to ECM (Engine Control Module). Refer to Brake Pedal Position Switch / Stop Lamp Switch . | |
| 9. | Parking brake switch | Detects the operation status of parking brake switch and transmits converted electric signal to combination meter. | |
| 10. | VDC OFF switch | Refer to VDC OFF Switch . | |
| 11. | Hill descent control switch (if so equipped) | Refer to Hill Descent Control Switch . | |
| 12. | Steering angle sensor | Refer to Steering Angle Sensor . | |
| 13. | Yaw rate/side/decel G sensor | Refer to Yaw Rate/Side/Decel G Sensor . | |
| 14. | Rear wheel sensor LH (RH similar) | Refer to Wheel Sensor and Sensor Rotor . | |
Crew Cab shown, King Cab® similar.
