Removal And Installation
›
Electric Intake Valve Timing Control Module
›
Exploded View
Exploded View

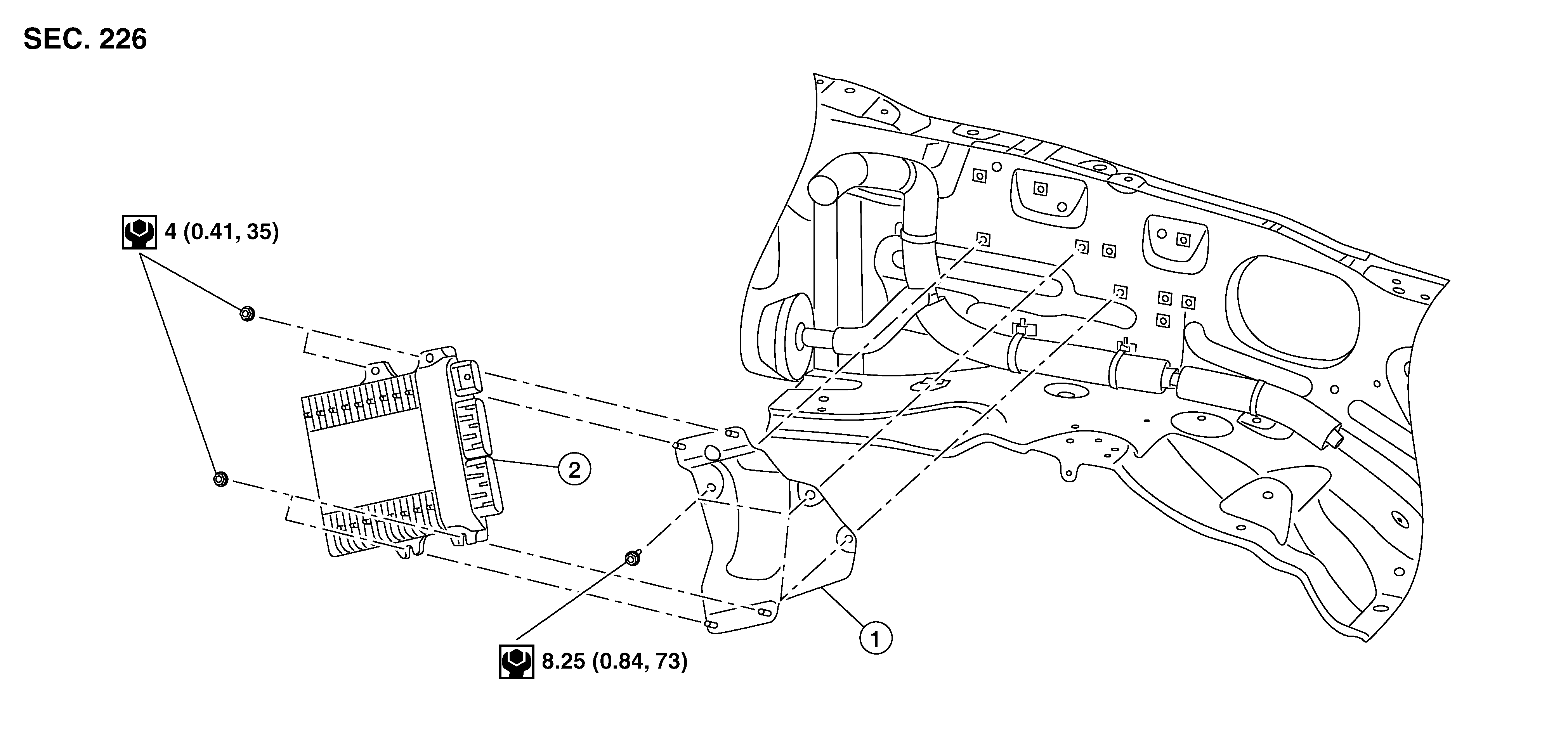

Fig 1: Electric Intake Valve Timing Control Module With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Electric intake valve timing control module bracket
2.
Electric intake valve timing control module
