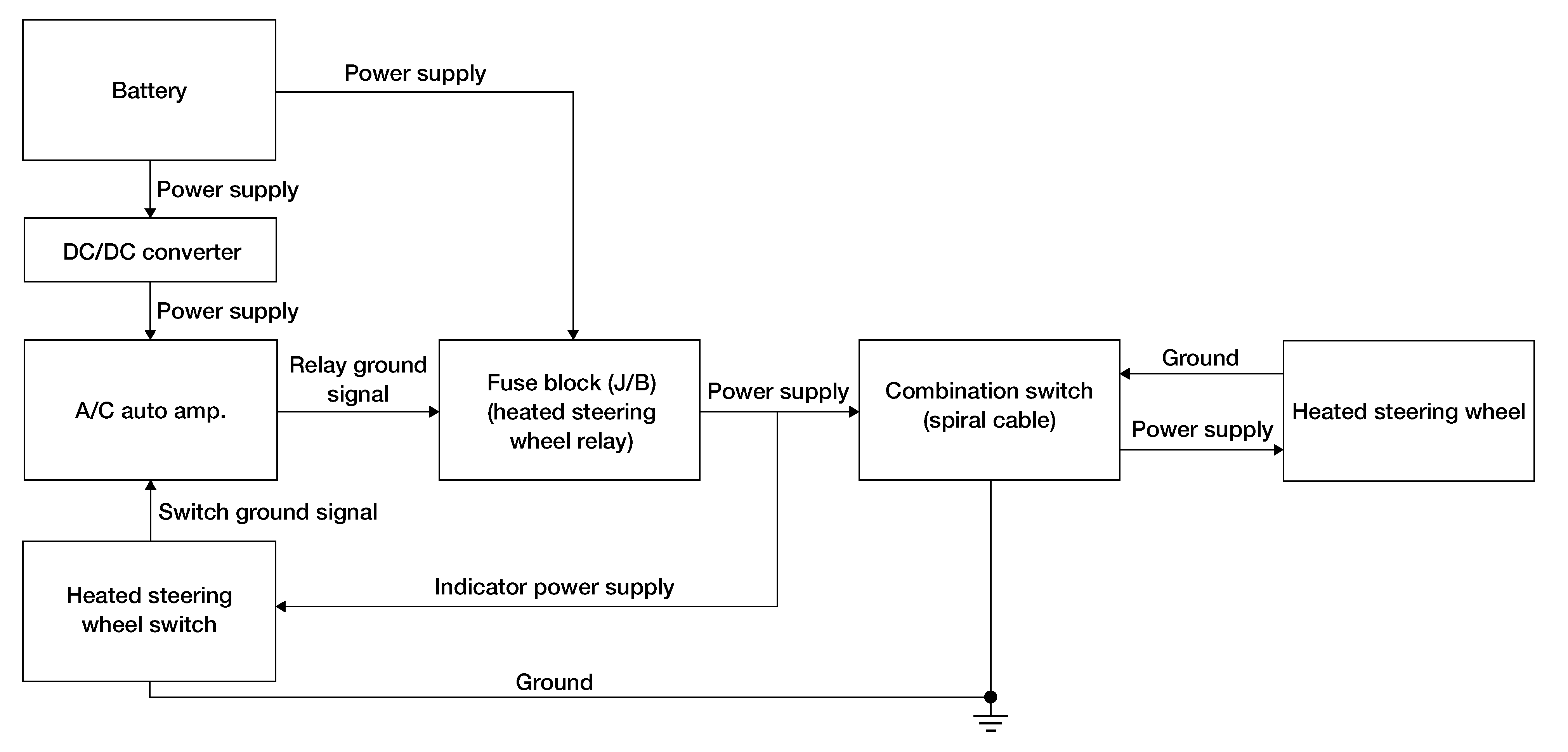

System Diagram
 Courtesy of NISSAN NORTH AMERICA, INC.
|
INPUT SIGNAL AND OUTPUT SIGNAL
| Switch |
Input signal to A/C auto amp. |
A/C auto amp. function |
Actuator |
| Heated steering wheel switch |
Switch ground signal |
Heated steering wheel control |
Heated steering wheel |
