Repair and Diagnosis
›
Steering
›
Steering Column
›
Steering System
›
Unit Disassembly And Assembly
›
Power Steering Gear And Linkage
›
Exploded View
Exploded View

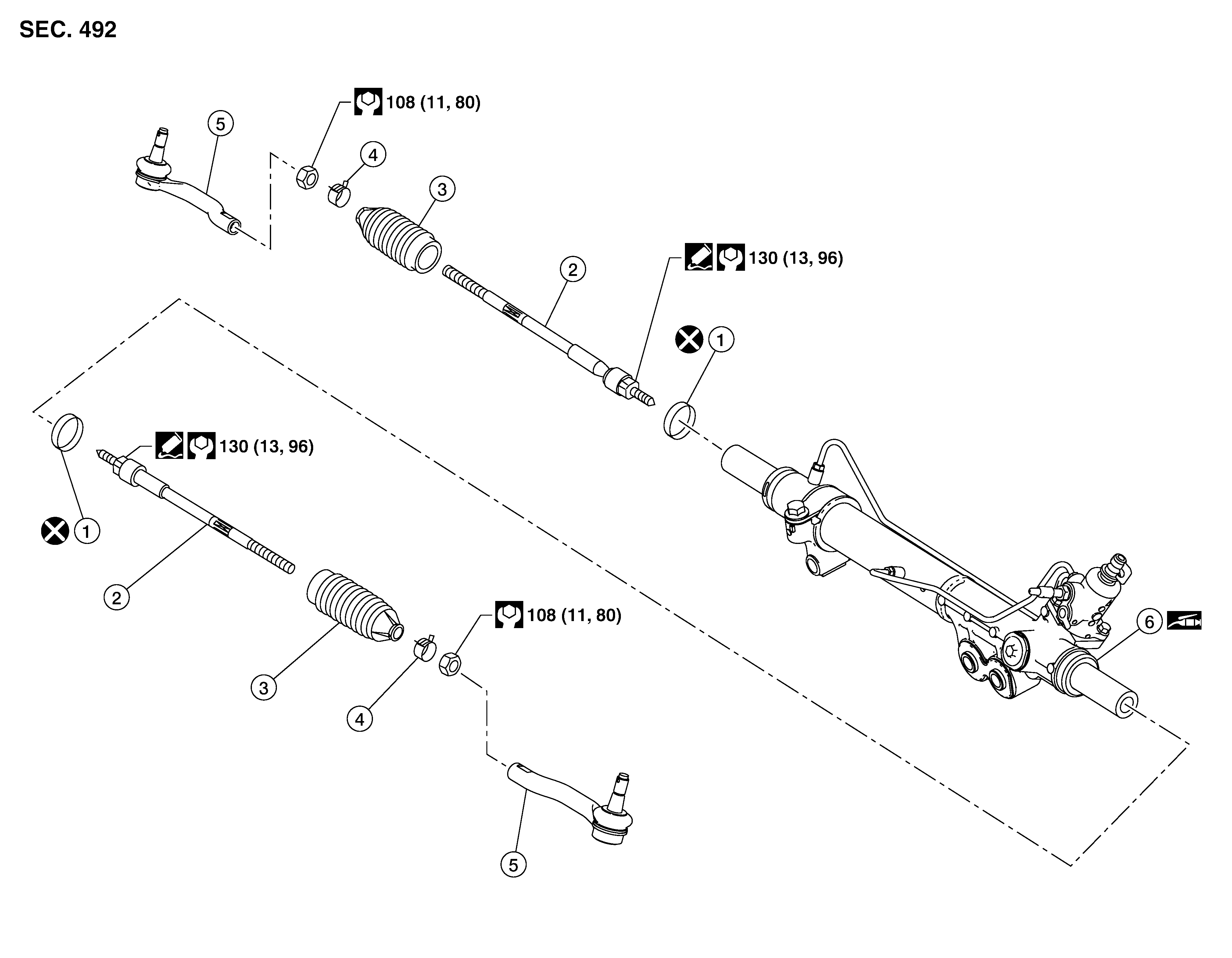

Fig 1: Power Steering Gear And Linkage With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Boot clamp
2.
Inner socket
3.
Boot
4.
Boot clamp
5.
Outer socket
6.
Gear housing assembly
Courtesy of NISSAN NORTH AMERICA, INC.
