Exploded View

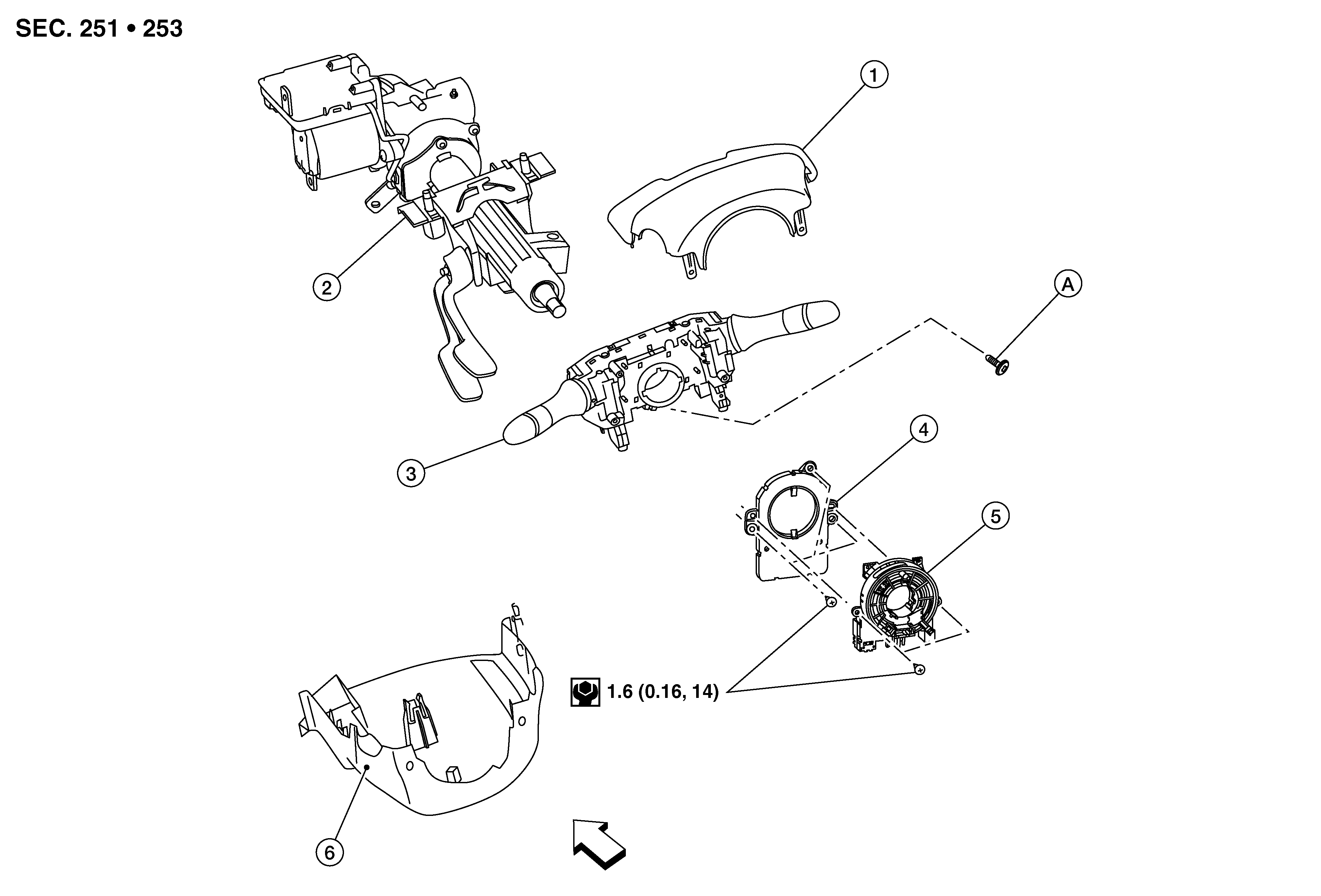

Fig 1: Combination Switch With Torque Specifications

GNSDB109356

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering column upper cover	2.	Steering column	3.	Combination switch
4.	Steering angle sensor	5.	Spiral cable	6.	Steering column lower cover
A.	Screw		Front
