Removal And Installation
›
Electric Intake Valve Timing Control Module
›
Exploded View
Exploded View

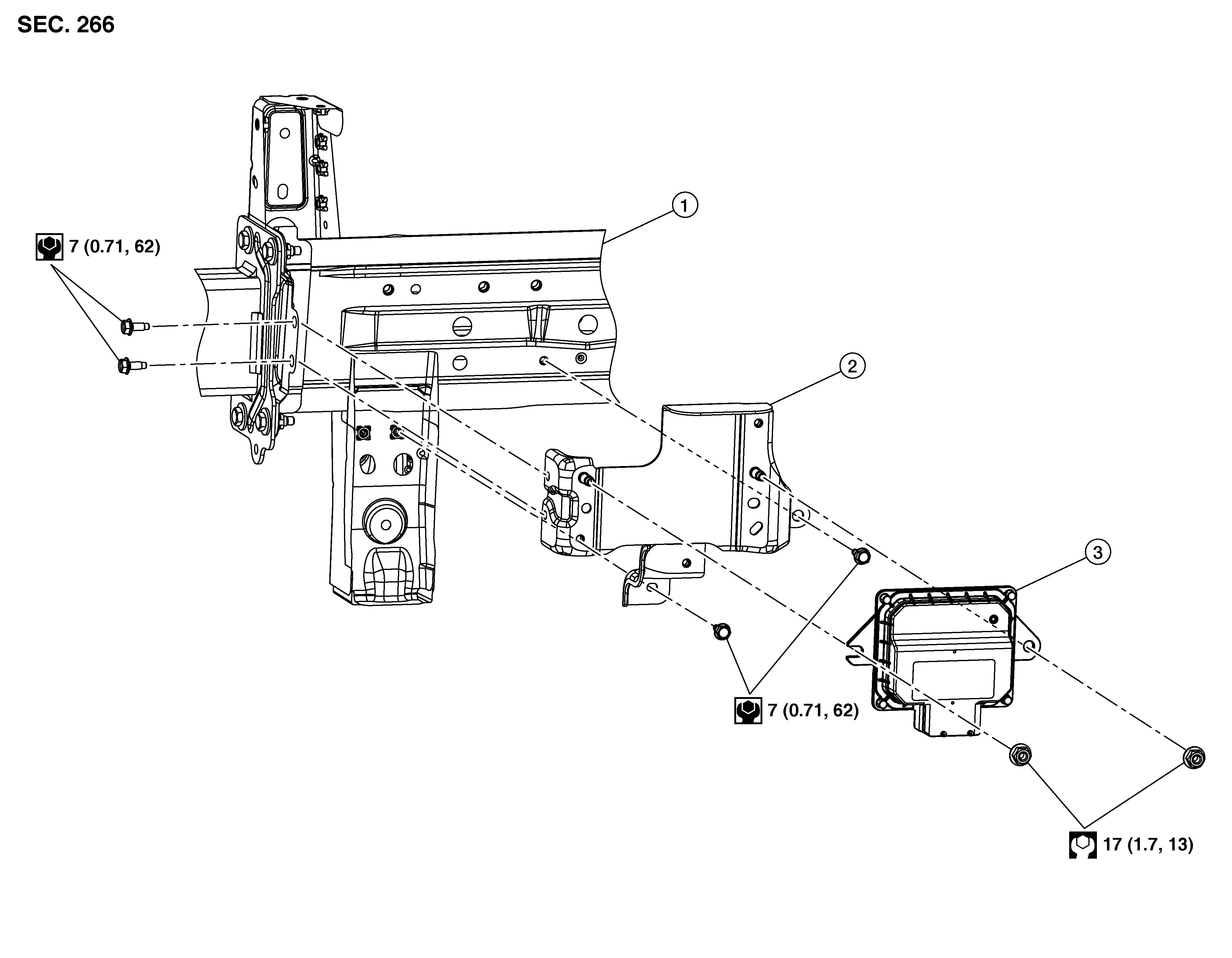

Fig 1: Electric Intake Valve Timing Control Module With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Side member
2.
Electric intake valve timing control module bracket
3.
Electric intake valve timing control module
