Exploded View

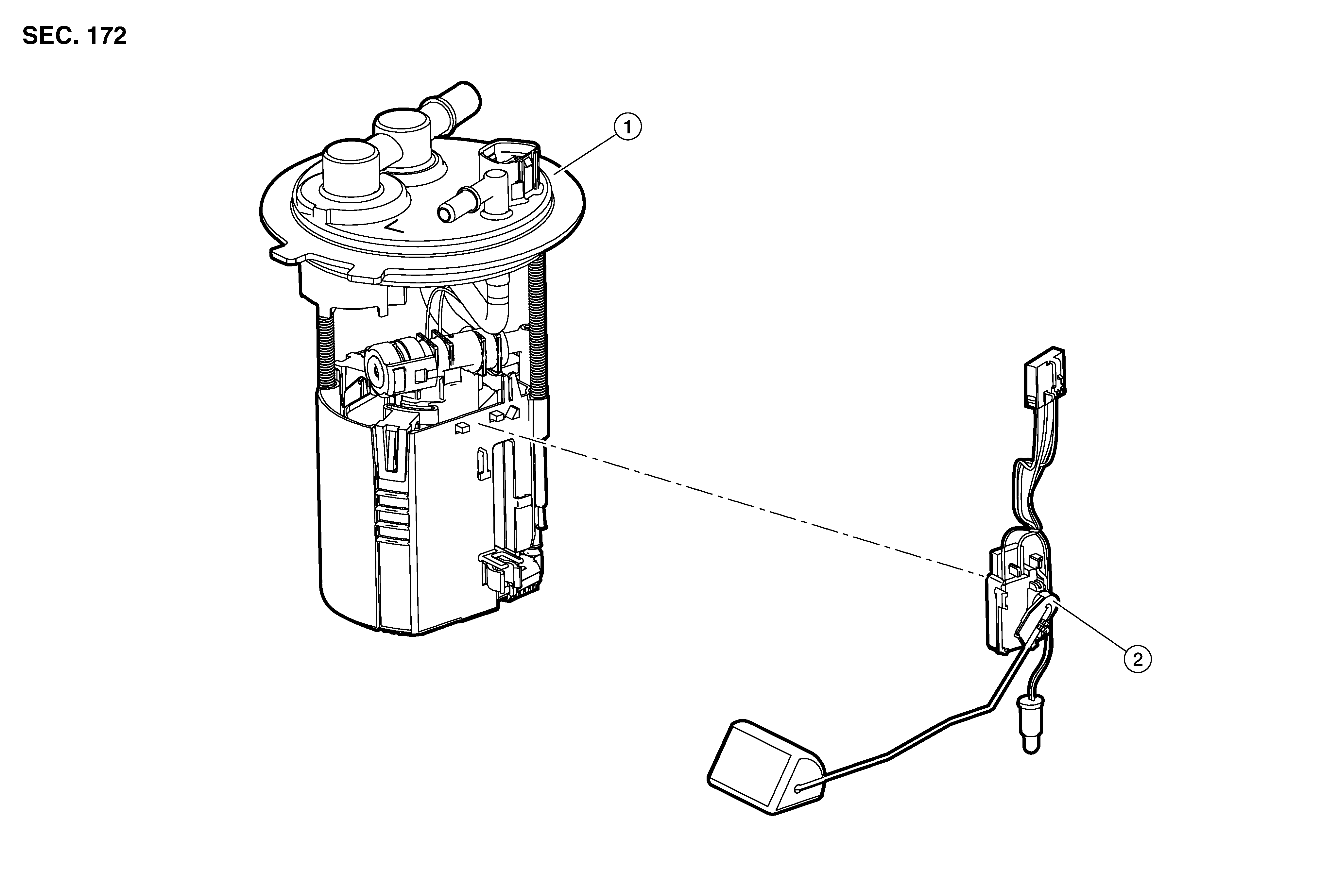

Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Fuel filter and fuel pump assembly
2.
Fuel level sensor
Courtesy of NISSAN NORTH AMERICA, INC.
