Exploded View

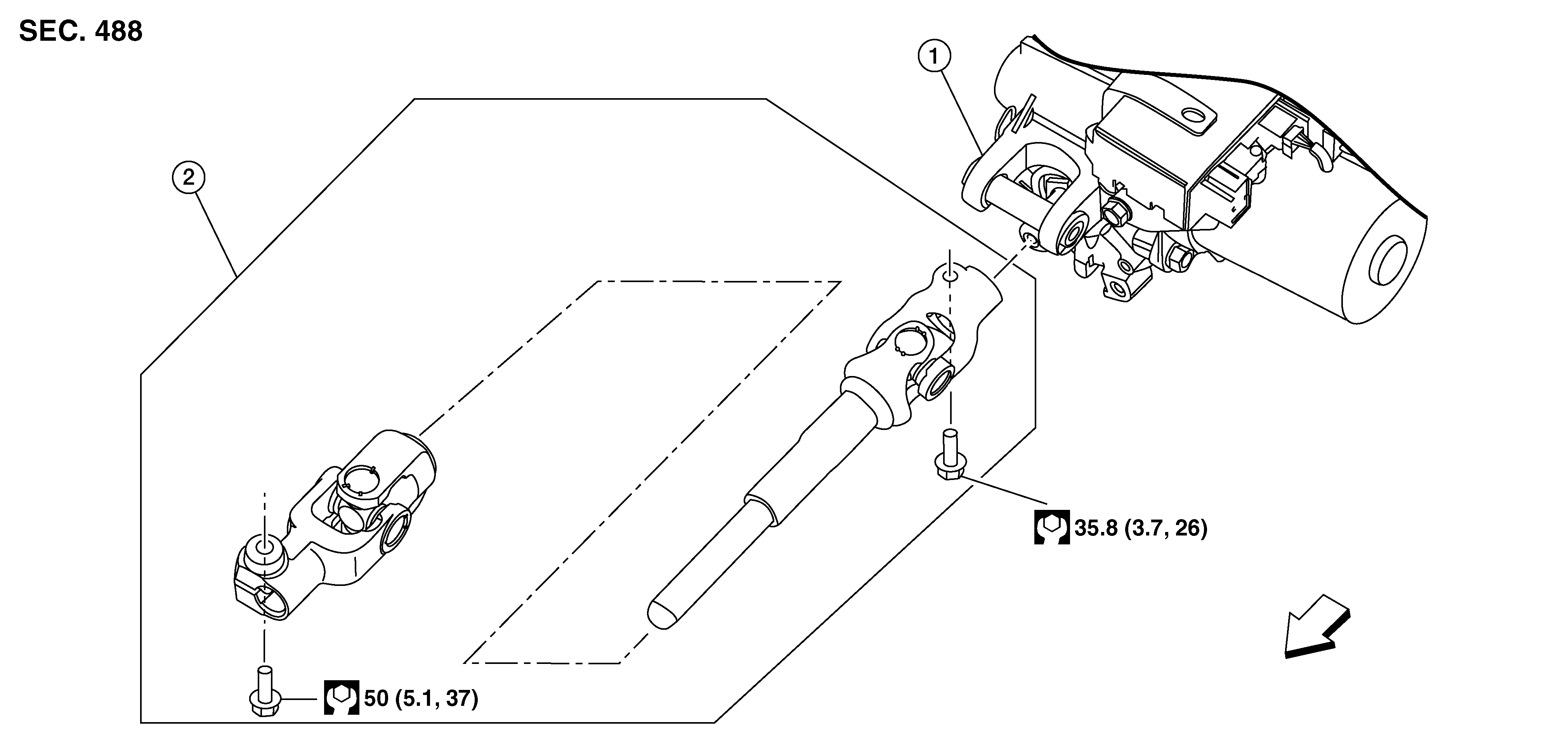

Fig 1: Lower Joint With Torque Specifications
GNSDB109277Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering column 2. Lower joint SYMBOL Front
