Exploded View

EXPLODED VIEW

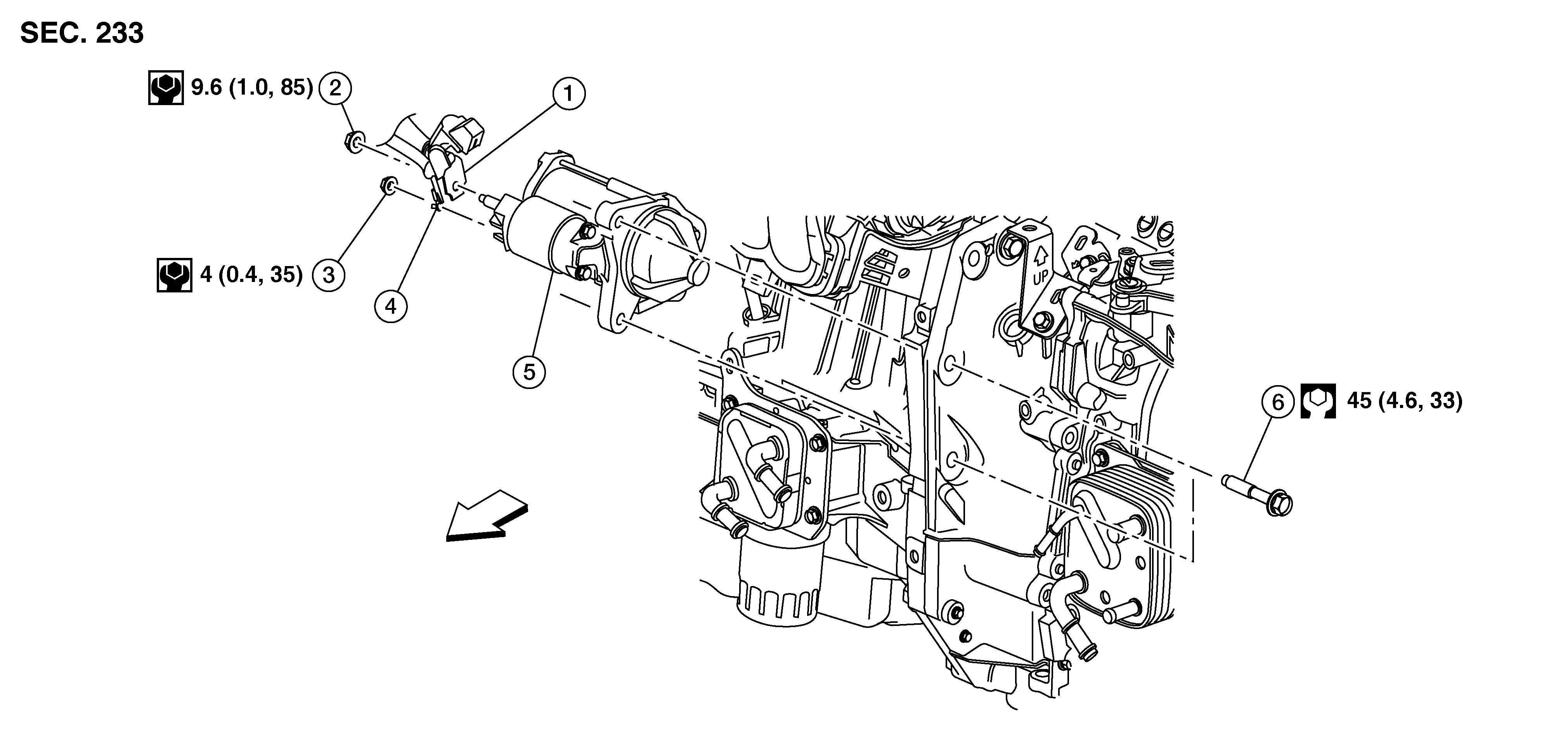

Fig 1: Starter Motor With Torque Specifications

GNSDB111288

Courtesy of NISSAN NORTH AMERICA, INC.

1.	"B" terminal harness	2.	"B" terminal nut	3.	"S" terminal nut
4.	"S" terminal harness	5.	Starter motor	6.	Bolt
	Front
