VCM: Exploded View
VCM: Exploded View

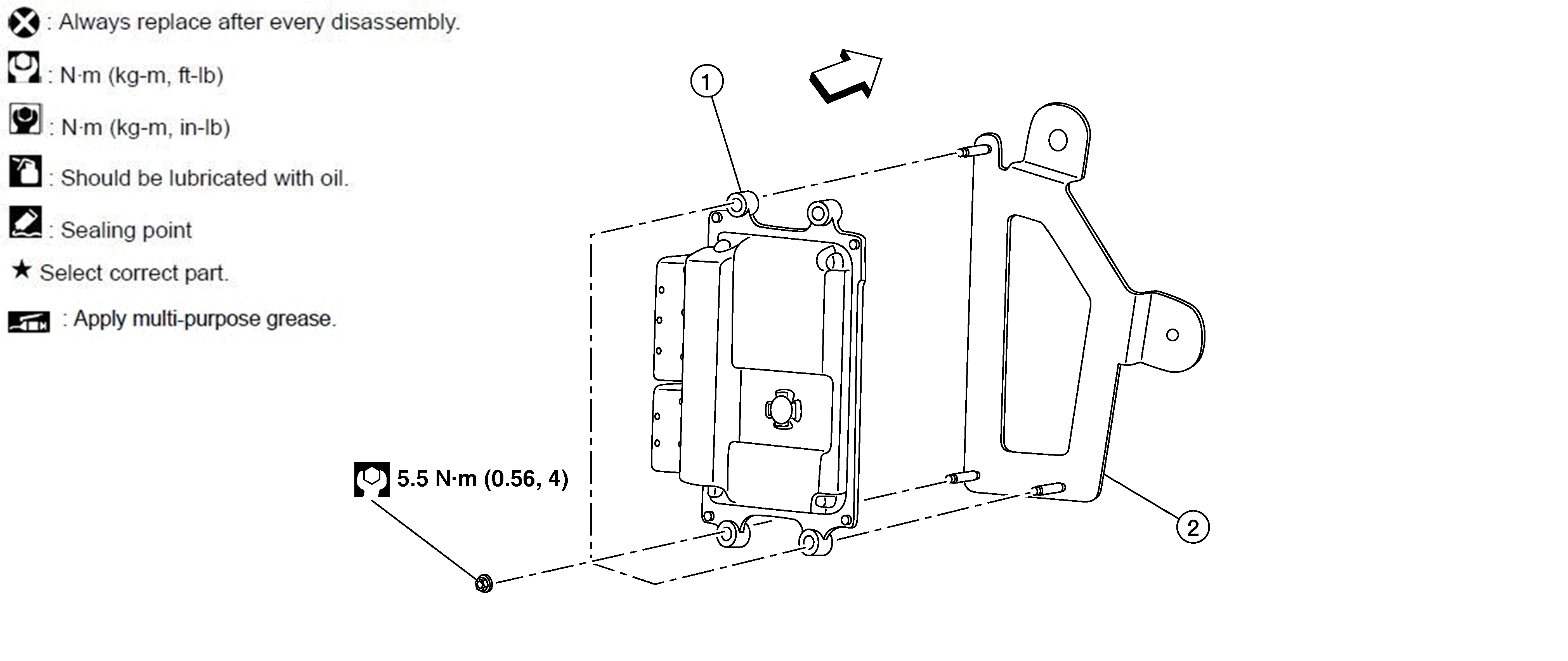

Fig 1: VCM With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
VCM
2.
VCM bracket
Front
Courtesy of NISSAN NORTH AMERICA, INC.
