Automatic Speed Control Device (ASCD): Operation

SWITCHES AND INDICATORS

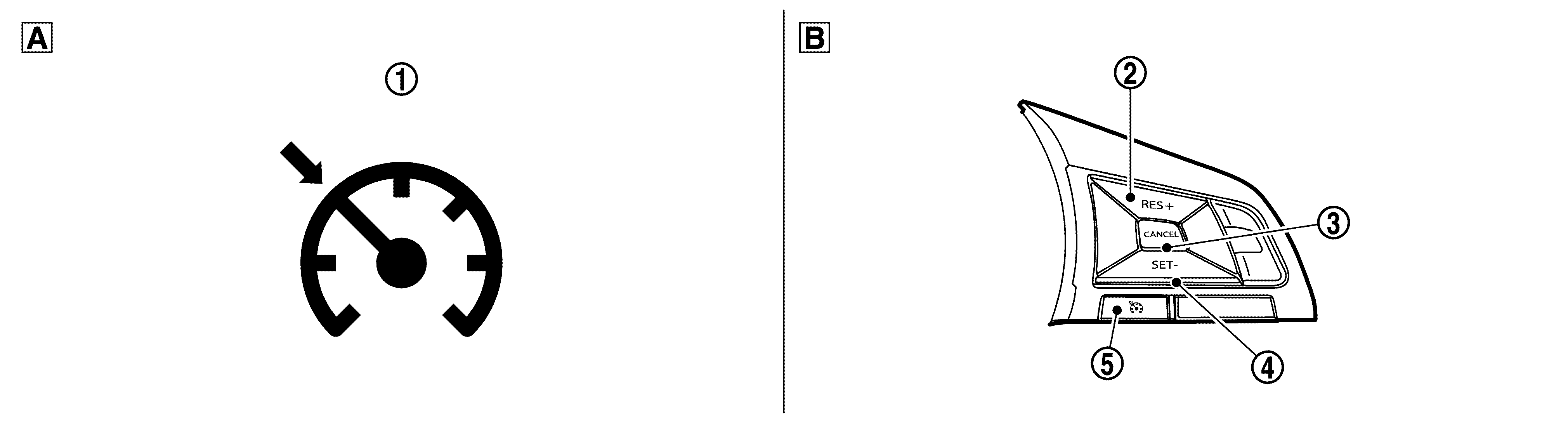

GNSDB141770

Courtesy of NISSAN NORTH AMERICA, INC.

	On the combination meter		On the steering wheel
	ASCD indicator		RES + switch (RESUME/ACCELERATE)		CANCEL switch
	SET - switch (SET/COAST)		ASCD MAIN switch

SWITCH OPERATION

Item	Function
CANCEL switch	When the switch is pressed, the ASCD control is cancelled.
ASCD MAIN switch	Turns the ASCD ON/OFF.
RES + switch (RESUME/ACCELERATE)	When the switch is pressed after the cruise control is cancelled in any method other than main switch operation, the vehicle speed is reset to the previous speed setting before the cancellation. * When the switch is pressed during cruise control, the setting speed is increased and the vehicle speed increases.
SET - switch (SET/COAST)	When the switch is pressed at the preferred vehicle speed, the cruise control starts to operate. When the switch is pressed during cruise control, the set speed is reduced and the vehicle speed reduces.

*: To reset vehicle speed, the vehicle condition must be as follows:

Brake pedal is released
Selector lever is in a position other than P, R, and N.
Vehicle speed is greater than 40 km/h (25 MPH).
